1-174957-1 - TE Connectivity

Description: Header vert 12 way Tab Multilock 070

Download 1-174957-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-174957-1 - TE Connectivity - PCB symbol
click to zoom

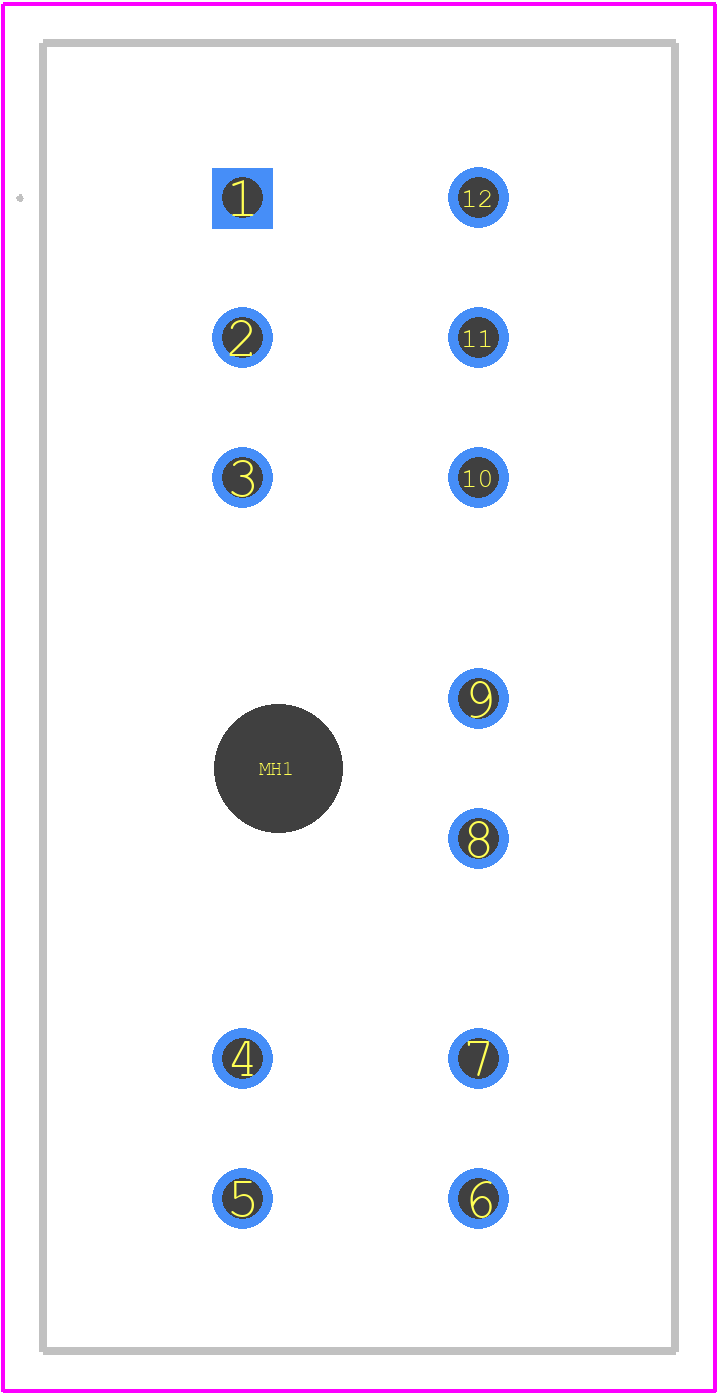

PCB Footprints
1-174957-1 - TE Connectivity PCB footprint - Other - Other - 1-174957-1-1
click to zoom
3D Models
1-174957-1 - TE Connectivity - 3D model - Other - 1-174957-1-1
click to zoom

1-174957-1 Details

  • Manufacturer Part Number:

    1-174957-1

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Additional Feature:

    MULTILOCK

  • Body Breadth:

    1.287 inch

  • Body Length:

    0.622 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Matte Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

1-174957-1 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the 1-174957-1 connector is designed to withstand vibrations and can be used in high-vibration environments. However, it's crucial to ensure proper mounting and secure connections to prevent damage or disconnection.
  • The 1-174957-1 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. Consult TE Connectivity's environmental sealing options or custom designs for specific requirements.
  • The 1-174957-1 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). However, it's essential to consider the specific application requirements and potential thermal stresses.
  • Yes, the 1-174957-1 connector is designed to be compatible with other TE Connectivity products and can be used with third-party components. However, ensure compatibility and consult the specific product datasheets and application notes.
