1-1775210-1 footprint, schematic symbol and 3D model by TE Connectivity

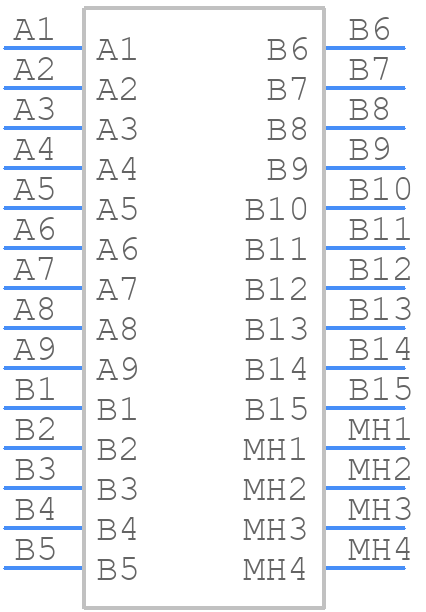

Symbol

click to zoom

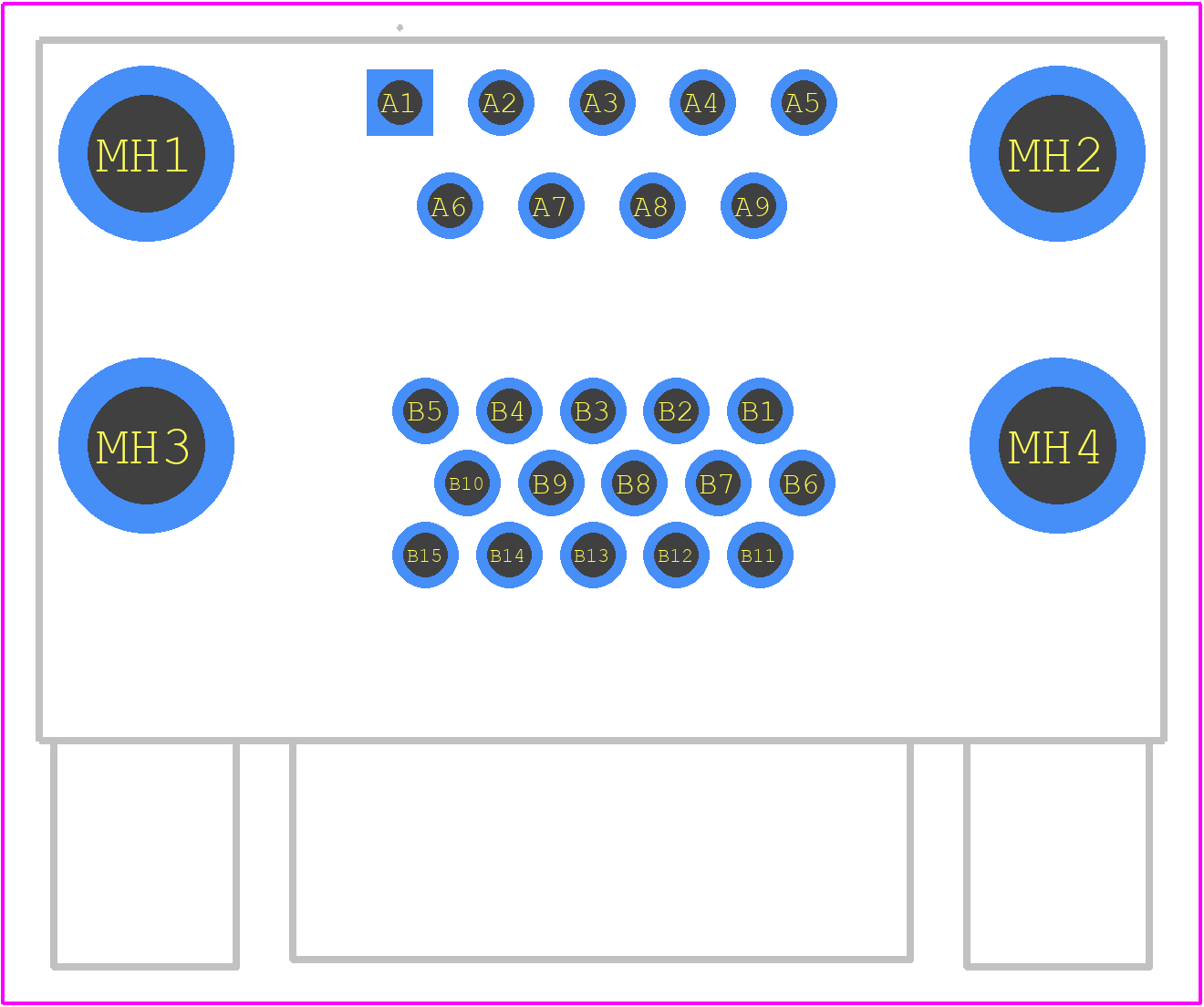

PCB Footprints

1-1775210-1 - TE Connectivity PCB footprint - Other - Other - 1-1775210-1-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1775210-1
Part Number 1-1775210-1
Manufacturer TE Connectivity
Pin Count 28
Part Category Connector
Package Category Other
Footprint Name Other - 1-1775210-1-1
Released Date May 21, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

1-1775210-1 Details

Manufacturer Part Number:
1-1775210-1
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
0
Additional Feature:
OTHER STACKING CONNECTOR: 15 CONTACTS, SHELL SIZE: 2/A
Body/Shell Style:
PLUG
Connector Type:
D SUBMINIATURE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYETHYLENE
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Finish:
NICKEL
Shell Material:
STEEL
Shell Size:
1/E
Termination Type:
SOLDER
Total Number of Contacts:
9
UL Flammability Code:
94V-0

1-1775210-1 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the 1-1775210-1 connector is designed to withstand high-vibration environments and meets the IEC 61373 standard for vibration resistance.
Yes, the 1-1775210-1 connector is rated for outdoor use and can withstand exposure to moisture and humidity, but it's recommended to use a sealant or conformal coating to ensure IP67 rating.
It's not recommended to use a wire gauge that's significantly different from the recommended 18-24 AWG, as it may affect the connector's performance and reliability.
To ensure proper mating, make sure the connector is properly aligned and seated, and the screw terminals are securely tightened. Also, ensure the connector is clean and free of debris.

Trust Checks

Community Provided

System Verified

Community Approved

1-1775210-1 Overview

Use the download button to access the 1-1775210-1 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-177, or try a keyword search, such as D Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
