1-1827872-3 - TE Connectivity

Description: Header,vert 26w,Tab,2mm,X-key,1100D

Download 1-1827872-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

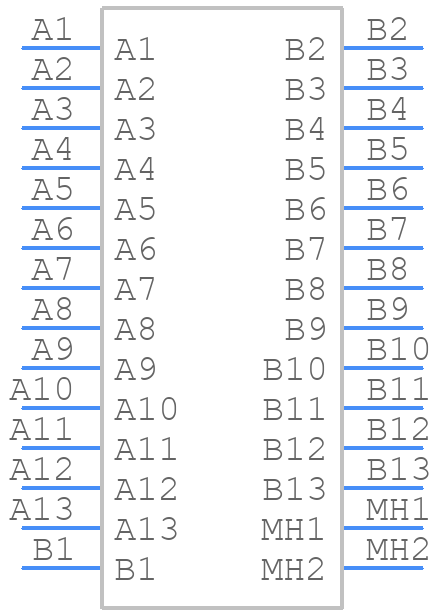

Symbol
1-1827872-3 - TE Connectivity - PCB symbol
click to zoom

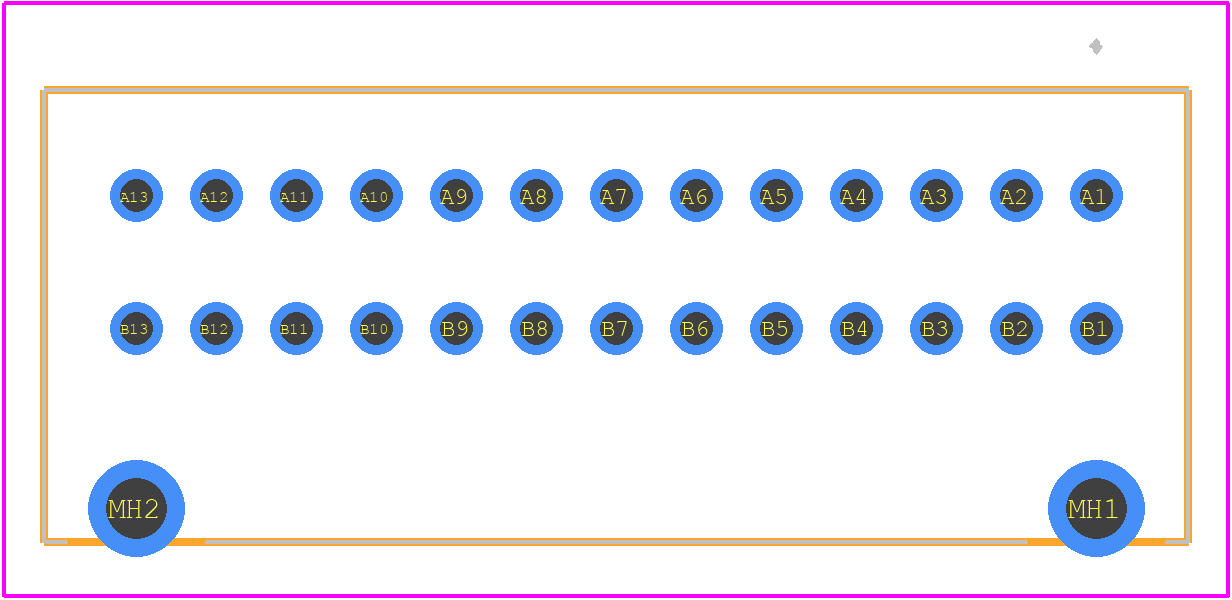

PCB Footprints
1-1827872-3 - TE Connectivity PCB footprint - Other - Other - 1-1827872-3-2
click to zoom
3D Models
1-1827872-3 - TE Connectivity - 3D model - Other - 1-1827872-3-2
click to zoom

1-1827872-3 Details

  • Manufacturer Part Number:

    1-1827872-3

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    POLARIZED, SHROUDED

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Body Breadth:

    0.445 inch

  • Body Depth:

    0.49 inch

  • Body Length:

    1.126 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

1-1827872-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1827872-3 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance on torque values for your specific application.
  • While the 1-1827872-3 connector is designed to be robust, it's essential to consider the specific vibration requirements of your application. TE Connectivity recommends consulting their vibration testing data and application notes to ensure the connector meets your specific requirements.
  • The 1-1827872-3 connector is designed to operate in a temperature range of -40°C to 125°C. However, for harsh environments, it's crucial to consult TE Connectivity's environmental testing data and application notes to ensure the connector meets your specific requirements.
  • The mating cycle life of the 1-1827872-3 connector is typically rated for 500-1000 mating cycles, depending on the specific application and environmental conditions. However, it's recommended to consult TE Connectivity's application notes or contact their technical support for specific guidance on mating cycle life for your specific application.
  • The 1-1827872-3 connector is designed to be compatible with other TE Connectivity products, but compatibility with third-party connectors may vary. It's essential to consult TE Connectivity's compatibility charts and application notes to ensure compatibility with your specific application.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1827872-3 Overview

Use the download button to access the 1-1827872-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-182, or try a keyword search, such as Power Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
