1-2178710-4 - TE Connectivity

1-2178710-4 Details

• Manufacturer Part Number:

  1-2178710-4

• Brand Name:

  AMP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Reach Compliance Code:

  Unknown

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Board Mounting Option:

  HOLE .055-.063

• Body Breadth:

  0.205 inch

• Body Depth:

  0.157 inch

• Body Length:

  0.779 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  SN ON NI

• Contact Finish Termination:

  TIN OVER NICKEL

• Contact Gender:

  FEMALE

• Contact Material:

  COPPER ALLOY

• Contact Pattern:

  RECTANGULAR

• Dielectric Withstanding Voltage:

  500VAC V

• Durability:

  8 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  5.7824 N

• Insulation Resistance:

  1000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• Mating Contact Pitch:

  0.05 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

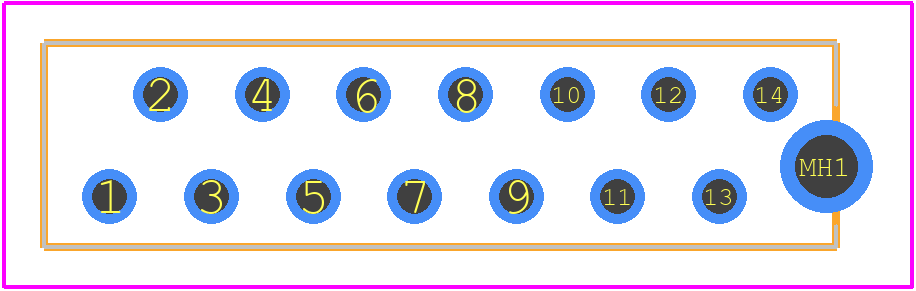

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Polarization Key:

  POLARIZED HOUSING

• Terminal Length:

  0.122 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  14

• Withdrawl Force-Min:

  .8896 N
