1-2199298-3 - TE Connectivity

Description: 2.54mm low profile THT DIL socket,14 way TE Connectivity 1-2199298 2.54mm Pitch Straight 14 Way, Through Hole Standard Pin Ladder IC Dip Socket, 1A

Download 1-2199298-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-2199298-3 - TE Connectivity - PCB symbol
click to zoom

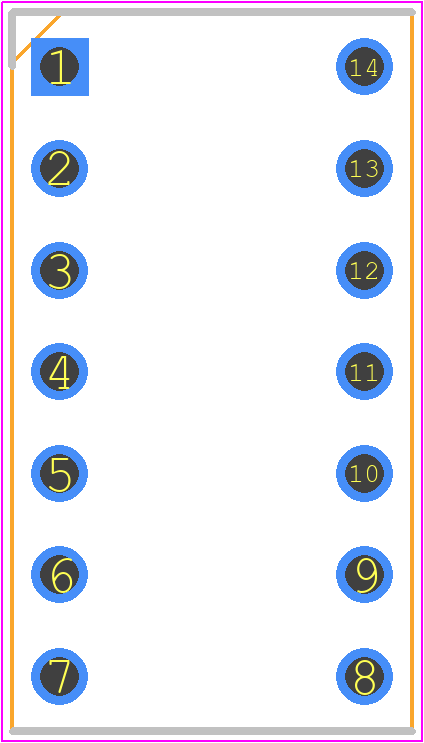

PCB Footprints
1-2199298-3 - TE Connectivity PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 1-2199298-3
click to zoom
3D Models
1-2199298-3 - TE Connectivity - 3D model - Dual-In-Line Sockets - 1-2199298-3
click to zoom

1-2199298-3 Details

  • Manufacturer Part Number:

    1-2199298-3

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Additional Feature:

    LOW PROFILE, STANDARD: UL 94V-0

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.2 inch

  • Body Length:

    0.7 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP14

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    GLASS FILLED PBT

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    14

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

1-2199298-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-2199298-3 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for precise torque values.
  • Yes, the 1-2199298-3 connector is designed to withstand high-vibration environments. Its rugged construction and secure locking mechanism ensure reliable connections even in harsh conditions.
  • The 1-2199298-3 connector is rated for operating temperatures between -40°C to 125°C (-40°F to 257°F). However, it's crucial to consider the specific application requirements and potential thermal stress on the connector.
  • Yes, the 1-2199298-3 connector is designed to be compatible with other TE Connectivity products, including cables, connectors, and accessories. However, it's essential to verify compatibility before integrating the connector into your system.
  • The 1-2199298-3 connector has an IP67 rating, which means it provides protection against solid objects and water immersion up to 1 meter (3.3 feet) for 30 minutes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-2199298-3 Overview

Use the download button to access the 1-2199298-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-219, or try a keyword search, such as Sockets and Chip Carriers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
