1-2199298-5 - TE Connectivity

Description: Conn DIP Socket SKT 18 POS 2.54mm Solder ST Thru-Hole Box/Tube

Download 1-2199298-5 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-2199298-5 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

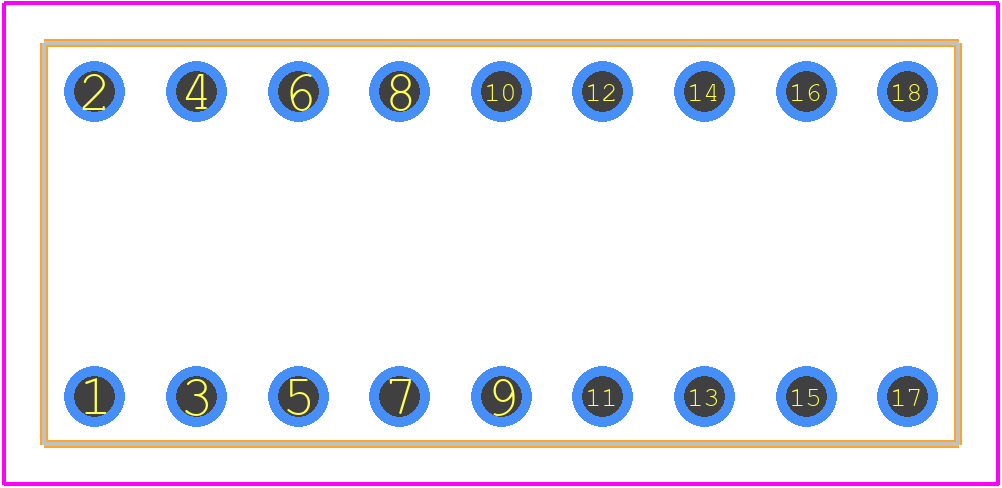

1-2199298-5 - TE Connectivity PCB footprint - Other - Other - 1-2199298-5-5
click to zoom
3D Models
1-2199298-5 - TE Connectivity - 3D model - Other - 1-2199298-5-5
click to zoom

1-2199298-5 Details

  • Manufacturer Part Number:

    1-2199298-5

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.3

  • Additional Feature:

    LOW PROFILE, STANDARD: UL 94V-0

  • Body Breadth:

    0.394 inch

  • Body Depth:

    0.2 inch

  • Body Length:

    0.9 inch

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    BELLOWED TYPE

  • Current Rating:

    1 A

  • Device Socket Type:

    IC SOCKET

  • Device Type Used On:

    DIP18

  • Dielectric Withstanding Voltage:

    1000VAC V

  • Housing Material:

    GLASS FILLED PBT

  • Insulation Resistance:

    1000000000 Ω

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mounting Style:

    STRAIGHT

  • Number of Contacts:

    18

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    0.30000000000000004 mm

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

1-2199298-5 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-2199298-5 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for precise torque values.
  • Yes, the 1-2199298-5 connector is designed to withstand high-vibration environments. Its rugged construction and secure locking mechanism ensure reliable connections even in demanding applications.
  • The 1-2199298-5 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's crucial to consult TE Connectivity's guidelines and perform thorough testing to ensure the connector meets the specific application requirements.
  • The 1-2199298-5 connector is rated for a minimum of 500 mating cycles. However, this value may vary depending on the application, usage, and environmental conditions.
  • The 1-2199298-5 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult TE Connectivity's guidelines before integrating the connector into a system.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-2199298-5 Overview

Use the download button to access the 1-2199298-5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-219, or try a keyword search, such as Sockets and Chip Carriers

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
