1-2834015-4 - TE Connectivity

Description: PCB Terminal Blocks, Receptacle, Wire-to-Board, 4 Position, 1 Row, Top Wire Entry Angle, 26 – 20AWG Wire Size, 6A Current Rating

Download 1-2834015-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-2834015-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

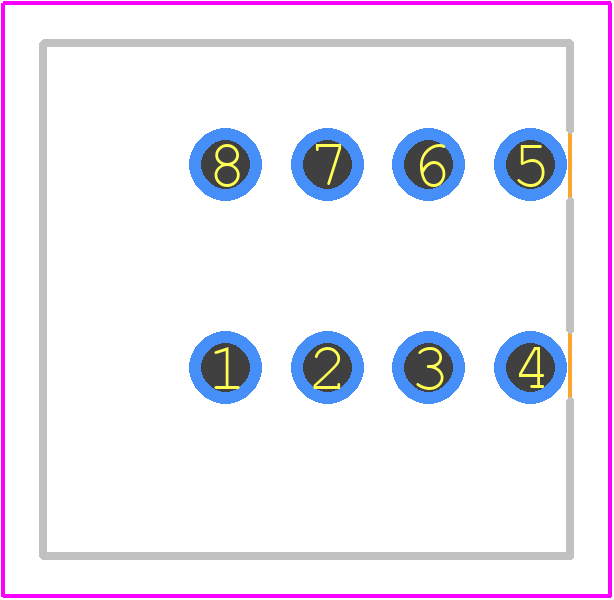

1-2834015-4 - TE Connectivity PCB footprint - Other - Other - 1-2834015-4-2
click to zoom
3D Models
1-2834015-4 - TE Connectivity - 3D model - Other - 1-2834015-4-2
click to zoom

1-2834015-4 Details

  • Manufacturer Part Number:

    1-2834015-4

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Factory Lead Time:

    22 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    6 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    0.518 mm2

  • Wire Gauge:

    20 AWG
