1-2834018-4 - TE Connectivity

Description: 4 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole

Download 1-2834018-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-2834018-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

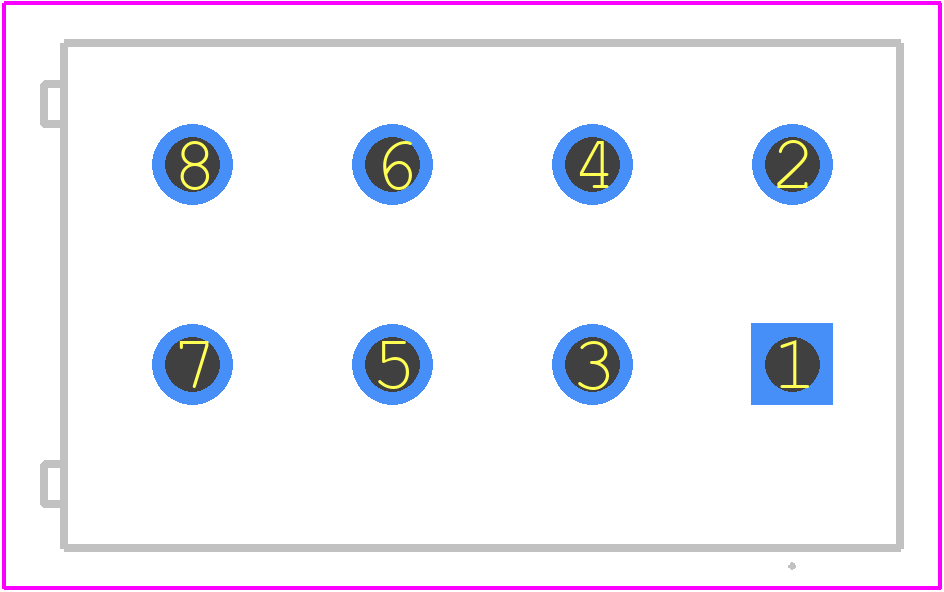

1-2834018-4 - TE Connectivity PCB footprint - Other - Other - 1-2834018-4-3
click to zoom

1-2834018-4 Details

  • Manufacturer Part Number:

    1-2834018-4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    TE Connectivity

  • Number of Rows:

    2

  • Number of Ways:

    4

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Gauge:

    14 AWG

1-2834018-4 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • Yes, the 1-2834018-4 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The maximum operating temperature for the 1-2834018-4 connector is 125°C (257°F).
  • Yes, the 1-2834018-4 connector is designed for automated assembly and can be easily integrated into high-volume manufacturing processes.
