1-776231-6 - TE Connectivity

Description: Connector Header Panel Mount, Through Hole 35 position 0.157" (4.00mm)

Download 1-776231-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

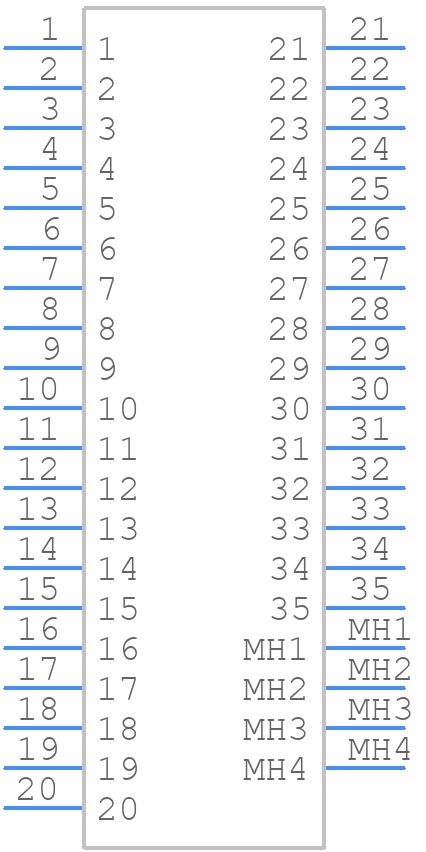

1-776231-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

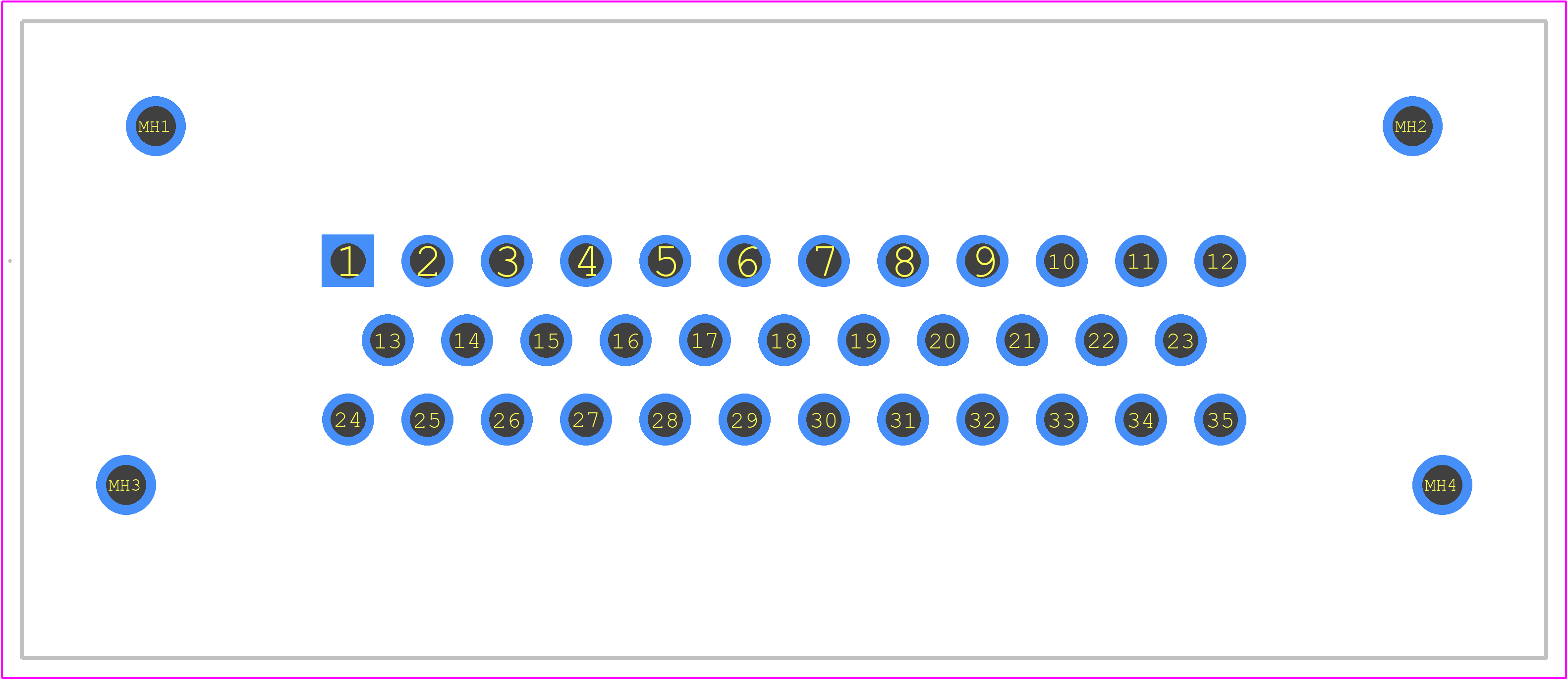

1-776231-6 - TE Connectivity PCB footprint - Other - Other - 1-776231-6-2
click to zoom
3D Models
1-776231-6 - TE Connectivity - 3D model - Other - 1-776231-6-2
click to zoom

1-776231-6 Details

  • Manufacturer Part Number:

    1-776231-6

  • Brand Name:

    AMP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Breadth:

    1.264 inch

  • Body Depth:

    0.758 inch

  • Body Length:

    3.03 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    STAGGERED

  • Contact Style:

    RND PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    10 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    100000000 Ω

  • Insulator Color:

    ORANGE

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    17A

  • Mating Contact Pitch:

    0.157 inch

  • Mating Contact Row Spacing:

    0.157 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    3

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    STAGGERED

  • PCB Contact Row Spacing:

    3.9878 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    20u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    17 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    35

  • UL Flammability Code:

    94V-0

1-776231-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-776231-6 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
  • Yes, the 1-776231-6 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
  • The 1-776231-6 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific environmental requirements of your application.
  • The 1-776231-6 connector is rated for a minimum of 500 mating cycles. However, this can vary depending on the application, usage, and environmental conditions. It's recommended to consult TE Connectivity's documentation and perform testing to determine the connector's performance in your specific use case.
  • The 1-776231-6 connector is designed to be compatible with other TE Connectivity products and some third-party connectors. However, it's essential to verify compatibility before using the connector in your application. Consult TE Connectivity's documentation and perform testing to ensure compatibility and reliable connections.
