1-787082-8 - TE Connectivity

Description: 100 Position D-Shaped Connector, Receptacle, Cable-to-Board, Board Mount, 1.27 mm [.05 in] Centerline, Printed Circuit Board, AMPLIMITE 0.50 Series

Download 1-787082-8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-787082-8 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

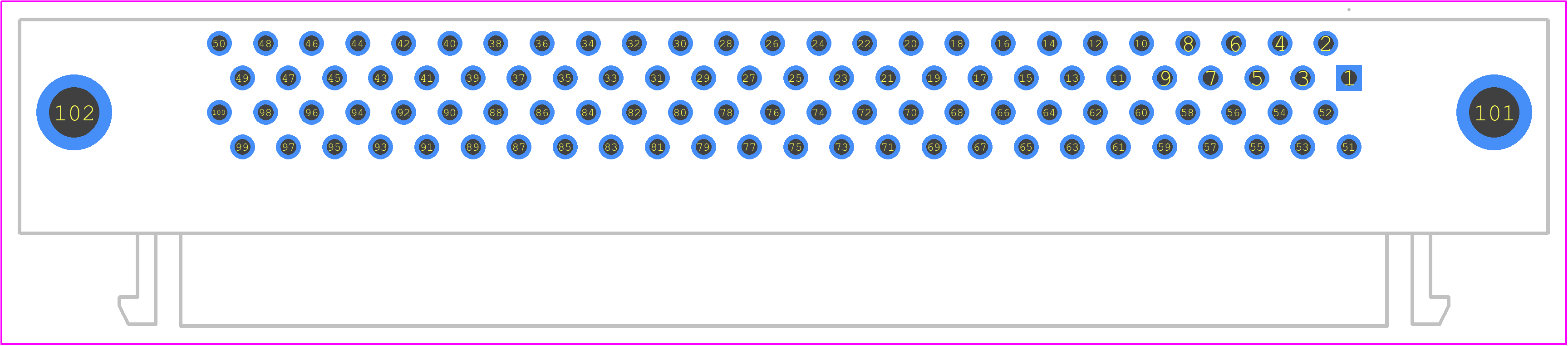

1-787082-8 - TE Connectivity PCB footprint - Other - Other - 1-787082-8-3
click to zoom
3D Models
1-787082-8 - TE Connectivity - 3D model - Other - 1-787082-8-3
click to zoom

1-787082-8 Details

  • Manufacturer Part Number:

    1-787082-8

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks, 2 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    5

  • Additional Feature:

    SHIELDED

  • Board Mounting Option:

    BOARD LOCK

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    TELECOM AND DATACOM CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    1A

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    #5-56

  • Mounting Option 2:

    CLINCH NUT

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Rated Current (Signal):

    1 A

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    CARBON STEEL

  • Terminal Length:

    0.1 inch

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    100

  • UL Flammability Code:

    94V-0

1-787082-8 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-787082-8 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's essential to consult the TE Connectivity application notes and torque guidelines for specific instructions.
  • Yes, the 1-787082-8 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1 Class B vibration standard, making it suitable for applications with high vibration levels.
  • The 1-787082-8 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95% RH. However, it's essential to consult the datasheet and application notes for specific environmental requirements.
  • The 1-787082-8 connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
  • Yes, the 1-787082-8 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and PCB connectors. However, it's essential to consult the TE Connectivity product catalog and application notes for specific compatibility information.
