1.5KE110CA-TP - MCC

Description: TVS

Download 1.5KE110CA-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1.5KE110CA-TP - MCC - PCB symbol
click to zoom
PCB Footprints

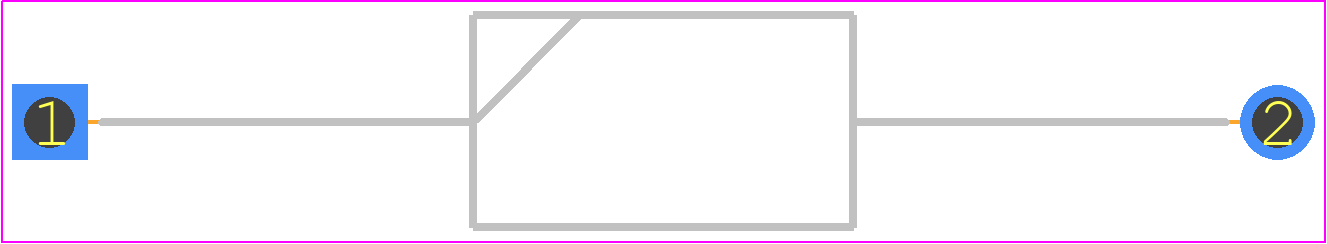

1.5KE110CA-TP - MCC PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - DO-201AE
click to zoom
3D Models
1.5KE110CA-TP - MCC - 3D model - Diodes, Axial Diameter Horizontal Mounting - DO-201AE
click to zoom

1.5KE110CA-TP Details

  • Manufacturer Part Number:

    1.5KE110CA-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DO-201AE

  • Package Description:

    PACKAGE-2

  • Pin Count:

    2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6.05

  • Additional Feature:

    CMOS COMPATIBLE

  • Breakdown Voltage-Max:

    116 V

  • Breakdown Voltage-Min:

    105 V

  • Breakdown Voltage-Nom:

    110 V

  • Case Connection:

    ISOLATED

  • Clamping Voltage-Max:

    152 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JEDEC-95 Code:

    DO-201AE

  • JESD-30 Code:

    O-PALF-W2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Peak Rev Power Dis-Max:

    1500 W

  • Number of Elements:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    ROUND

  • Package Style:

    LONG FORM

  • Peak Reflow Temperature (Cel):

    260

  • Polarity:

    BIDIRECTIONAL

  • Power Dissipation-Max:

    5 W

  • Qualification Status:

    Not Qualified

  • Reference Standard:

    UL RECOGNIZED

  • Rep Pk Reverse Voltage-Max:

    94 V

  • Surface Mount:

    NO

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    WIRE

  • Terminal Position:

    AXIAL

  • Time@Peak Reflow Temperature-Max (s):

    10

1.5KE110CA-TP Frequently Asked Questions (FAQs)

  • The recommended footprint and land pattern for the 1.5KE110CA-TP can be found in the Micro Commercial Components' application note or in IPC-7351 standard. It's essential to follow the recommended footprint to ensure proper soldering and to prevent thermal issues.
  • The 1.5KE110CA-TP should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store them in their original packaging or in a similar ESD-protective package. During shipping, ensure the components are properly secured and protected from mechanical stress and electrostatic discharge.
  • The maximum allowable voltage derating for the 1.5KE110CA-TP depends on the operating conditions and the application. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and to prevent overheating. Consult the datasheet and application notes for more information.
  • The 1.5KE110CA-TP is a commercial-grade component, and its use in high-reliability or aerospace applications may require additional testing and qualification. It's recommended to consult with the manufacturer and relevant industry standards (e.g., MIL-STD-883) to ensure the component meets the required specifications and reliability standards.
  • The 1.5KE110CA-TP can be soldered using a standard reflow soldering process. Ensure the soldering temperature and time are within the recommended specifications (typically 260°C for 10-30 seconds). Use a solder with a melting point above 217°C to prevent thermal damage to the component.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1.5KE110CA-TP Overview

Use the download button to access the 1.5KE110CA-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1.5KE, or try a keyword search, such as Transient Suppressors
