1.5KE24CA-TP footprint, schematic symbol and 3D model by MCC

Symbol

click to zoom

PCB Footprints

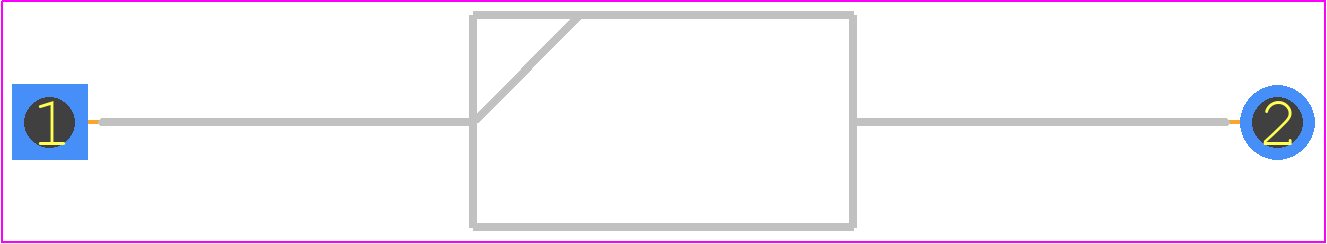

1.5KE24CA-TP - MCC PCB footprint - Diodes, Axial Diameter Horizontal Mounting - Diodes, Axial Diameter Horizontal Mounting - 1.5KE24CA*9

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1.5KE24CA-TP
Part Number 1.5KE24CA-TP
Manufacturer MCC
Pin Count 2
Part Category TVS Diode (Bi-directional)
Package Category Diodes, Axial Diameter Horizontal Mounting
Footprint Name Diodes, Axial Diameter Horizontal Mounting - 1.5KE24CA*9
Released Date Dec 29, 2023
Last Modified Date Mar 13, 2024 1:00 PM UTC
Pinout / Pin List Click Here (Member Only)

1.5KE24CA-TP Details

Manufacturer Part Number:
1.5KE24CA-TP
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Part Package Code:
DO-201AE
Package Description:
PACKAGE-2
Pin Count:
2
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8541.10.00.50
Manufacturer:
Micro Commercial Components
YTEOL:
6.31
Additional Feature:
CMOS COMPATIBLE
Breakdown Voltage-Max:
25.2 V
Breakdown Voltage-Min:
22.8 V
Breakdown Voltage-Nom:
24 V
Case Connection:
ISOLATED
Clamping Voltage-Max:
33.2 V
Configuration:
SINGLE
Diode Element Material:
SILICON
Diode Type:
TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 Code:
DO-201AE
JESD-30 Code:
O-PALF-W2
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Non-rep Peak Rev Power Dis-Max:
1500 W
Number of Elements:
1
Number of Terminals:
2
Operating Temperature-Max:
175 °C
Operating Temperature-Min:
-55 °C
Package Body Material:
PLASTIC/EPOXY
Package Shape:
ROUND
Package Style:
LONG FORM
Peak Reflow Temperature (Cel):
260
Polarity:
BIDIRECTIONAL
Power Dissipation-Max:
5 W
Qualification Status:
Not Qualified
Reference Standard:
UL RECOGNIZED
Rep Pk Reverse Voltage-Max:
20.5 V
Surface Mount:
NO
Technology:
AVALANCHE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
WIRE
Terminal Position:
AXIAL
Time@Peak Reflow Temperature-Max (s):
10

1.5KE24CA-TP Frequently Asked Questions (FAQs)

The recommended footprint and land pattern for the 1.5KE24CA-TP can be found in the Micro Commercial Components' application note or in IPC-7351 standard. It's essential to follow the recommended footprint to ensure proper soldering and to prevent thermal issues.
The 1.5KE24CA-TP should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store them in their original packaging or in a similar ESD-protective package. During shipping, ensure the components are properly secured and protected from mechanical stress and electrostatic discharge.
The maximum allowable voltage derating for the 1.5KE24CA-TP depends on the operating conditions and the desired reliability level. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and to prevent premature failure.
The 1.5KE24CA-TP is rated for operation up to 150°C. However, it's essential to consider the derating factors and ensure the component is properly cooled to prevent thermal runaway. It's recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.
To ensure proper soldering and connection, follow the recommended soldering profile and techniques. Ensure the component is properly aligned and seated on the PCB, and that the solder joints are clean and free of oxidation. It's also recommended to use a solder with a high melting point and to avoid overheating the component.
