- Stock & Prices $ Price & Stock for 1.5KE47A-TP
- Part Number 1.5KE47A-TP
- Manufacturer MCC
- Pin Count 2
- Part Category TVS Diode (Uni-directional)
- Package Category Diodes, Axial Diameter Horizontal Mounting

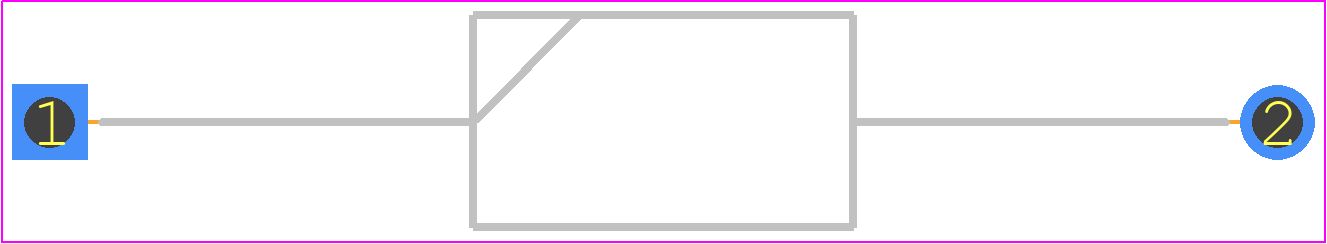

- Footprint Name Diodes, Axial Diameter Horizontal Mounting - DO-201AE
- Released Date Dec 29, 2023
- Last Modified Date Mar 13, 2024 1:00 PM UTC
- Pinout / Pin List Click Here (Member Only)
1.5KE47A-TP Details
-
Manufacturer Part Number:
1.5KE47A-TP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DO-201AE
-
Package Description:
PACKAGE-2
-
Pin Count:
2
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8541.10.00.50
-
Manufacturer:
Micro Commercial Components
1.5KE47A-TP Frequently Asked Questions (FAQs)
-
The recommended footprint and land pattern for the 1.5KE47A-TP can be found in the manufacturer's packaging information document or in IPC-7351 standards. A typical footprint for this component is a DO-204AC package with a recommended land pattern of 2.5mm x 1.5mm.
-
To ensure proper soldering and reliability, follow the manufacturer's recommended soldering profile, use a solder with a melting point above 217°C, and ensure the component is properly cleaned and dried before soldering. Additionally, perform visual inspection and electrical testing to verify the component's functionality.
-
The maximum operating temperature range for the 1.5KE47A-TP is -65°C to 175°C, as specified in the datasheet. However, it's essential to consider the derating factors and ensure the component is operated within the recommended temperature range to maintain its performance and reliability.
-
The 1.5KE47A-TP is a commercial-grade component, and its use in high-reliability or aerospace applications may require additional testing, screening, and qualification. It's recommended to consult with the manufacturer and relevant industry standards (e.g., MIL-PRF-19500) to ensure the component meets the required specifications and standards.
-
Handle the 1.5KE47A-TP with care to prevent mechanical damage, and store it in a dry, cool place away from direct sunlight. Use anti-static packaging and follow ESD handling procedures to prevent electrostatic discharge damage. Avoid exposing the component to extreme temperatures, humidity, or chemicals.
