The recommended footprint and land pattern for the 1.5KE68A-TP can be found in the manufacturer's packaging information document or in IPC-7351 standards. A typical footprint for this component is a DO-201AD package with a recommended land pattern of 4.57mm x 2.54mm.
To ensure proper soldering and reliability, follow the manufacturer's recommended soldering profile, use a solder with a melting point above 217°C, and ensure the component is properly cleaned and dried before soldering. Additionally, perform visual inspection and electrical testing to verify the component's functionality.
The 1.5KE68A-TP has a maximum junction temperature of 150°C. To ensure reliable operation, provide adequate heat dissipation through a heat sink or thermal pad, and ensure the component is not exposed to excessive ambient temperatures or thermal shocks.
The 1.5KE68A-TP is a commercial-grade component and may not meet the requirements for high-reliability or aerospace applications. For such applications, consider using components with higher reliability ratings, such as those with a MIL-PRF-19500 or NASA-approved certification.
The 1.5KE68A-TP has a polarity mark on the component body. Ensure the component is oriented correctly during assembly, with the cathode (negative leg) facing the correct direction. Misorientation or incorrect polarity can lead to component failure or malfunction.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1.5KE68A-TP Overview

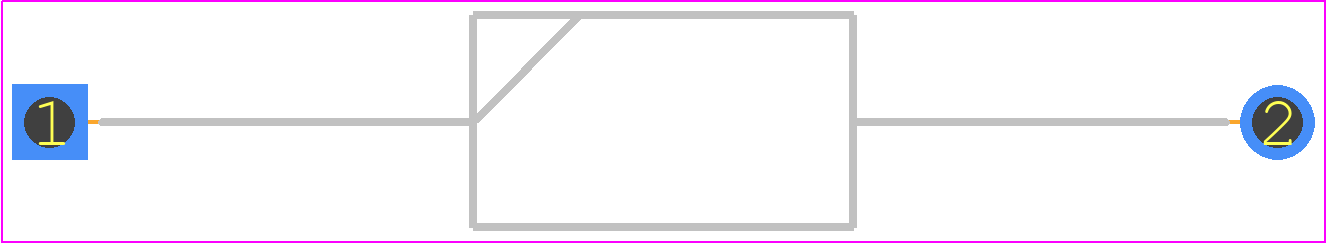

Use the download button to access the 1.5KE68A-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1.5KE,
or try a keyword search, such as Transient Suppressors
