The recommended PCB layout involves placing the component on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal pad is also recommended to maintain a junction temperature below 125°C.
To ensure reliable operation, follow the recommended derating curves for voltage and current, and ensure the device is operated within the specified temperature range (-40°C to 125°C). Additionally, consider using thermal protection and overcurrent protection circuits.
The recommended soldering conditions are: peak temperature 260°C, time above 217°C 60-90 seconds, and time above 183°C 150-210 seconds. For rework, use a low-temperature soldering iron (350°F/175°C) and avoid applying excessive heat or force.
Use a systematic approach to troubleshoot issues: 1) Verify power supply and input voltage, 2) Check for overheating, 3) Verify correct pin connections, 4) Use an oscilloscope to analyze waveforms, and 5) Consult the datasheet and application notes for guidance.
Handle the component in an ESD-protected environment, wear an ESD strap, and use ESD-safe tools. Avoid touching the component's pins or leads, and store the component in an anti-static bag or container.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1000B-5001FXT Overview

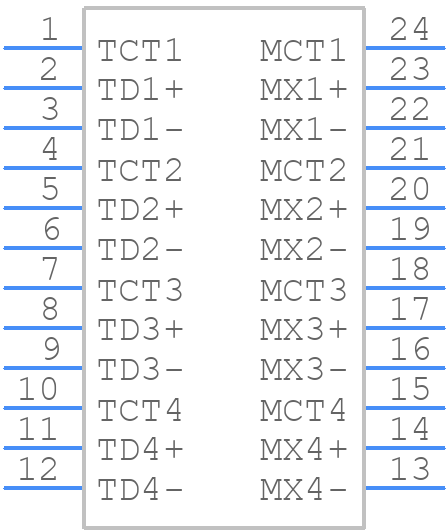

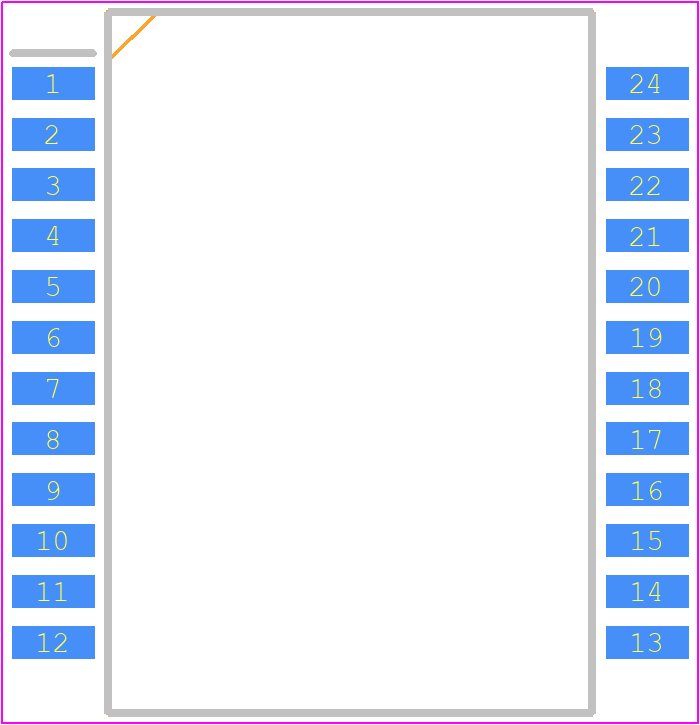

Use the download button to access the 1000B-5001FXT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1000B,
or try a keyword search, such as Pulse/Datacom Transformers
