The recommended PCB layout involves keeping the component away from high-current paths and heat sources. A thermal pad on the bottom of the package helps with heat dissipation. A minimum of 2oz copper thickness and a 2-layer PCB with a solid ground plane is recommended.
To ensure reliable operation, follow the recommended derating curves for voltage and current. Also, ensure the device is properly soldered, and the PCB is designed to minimize thermal gradients.
Exceeding maximum ratings can lead to permanent damage or reduced lifespan. To prevent damage, ensure that the device operates within the recommended specifications, and implement overvoltage, overcurrent, and overtemperature protection mechanisms.
Common failure modes include overheating, overvoltage, and electrical overstress. Troubleshoot by checking for proper soldering, verifying input/output signals, and monitoring temperature and voltage levels.
The device has built-in ESD protection, but handling precautions are still necessary. Use an ESD wrist strap or mat, and handle the device by the body or pins, avoiding direct contact with the die.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
1000B-5003X Overview

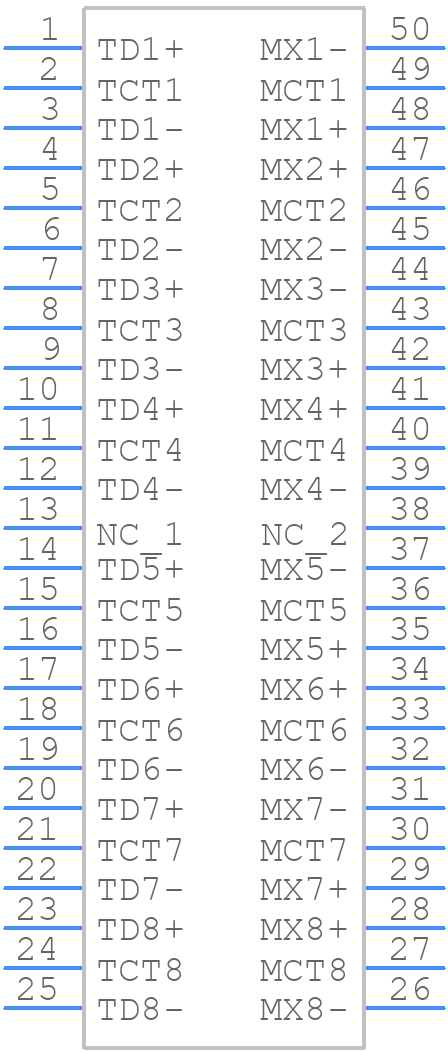

Use the download button to access the 1000B-5003X schematic symbol, PCB footprint, and 3D model.
