1000B-5009FX - iNRCORE

Description: 350µH LAN 10/100/1000 Base-T Pulse Transformer 1:1 Surface Mount -55°C to +125°C24-Pin

Download 1000B-5009FX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

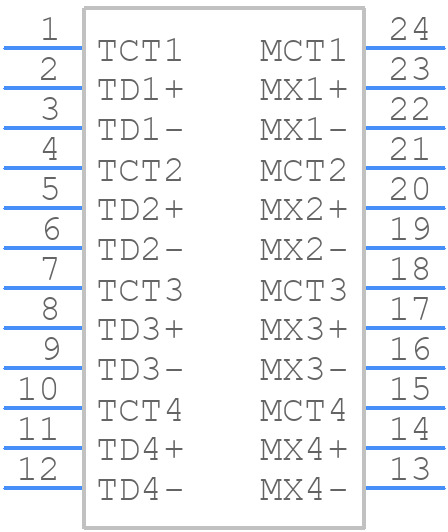

Symbol
1000B-5009FX - iNRCORE - PCB symbol
click to zoom
PCB Footprints
1000B-5009FX - iNRCORE PCB footprint - Other - Other - 1000B-5009FX-2
click to zoom

1000B-5009FX Details

  • Manufacturer Part Number:

    1000B-5009FX

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    iNRCORE LLC

  • YTEOL:

    6

  • Application:

    10/100/1000 BASE-T

  • Approvals:

    IEEE

  • Height:

    8.63 mm

  • JESD-609 Code:

    e0

  • Length:

    15.24 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1; 1:1; 1:1; 1:1

  • Width:

    7.62 mm

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1000B-5009FX Overview

Use the download button to access the 1000B-5009FX schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 1000B, or try a keyword search, such as Pulse/Datacom Transformers
