1000B-5012X - iNRCORE

Description: 350µH LAN 10/100/1000 Base-T Pulse Transformer 1:1 Surface Mount

Download 1000B-5012X Model

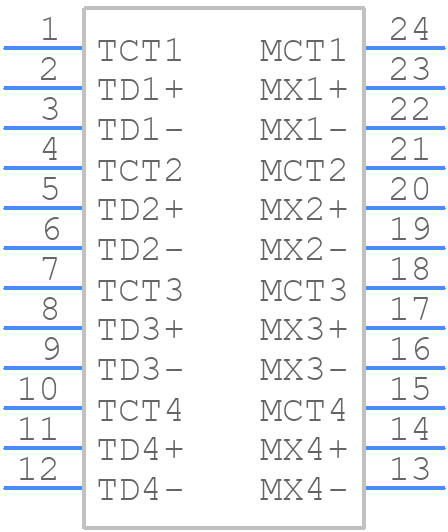

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
1000B-5012X - iNRCORE PCB footprint - Other - Other - 1000B-5012X-2
click to zoom
3D Models
1000B-5012X - iNRCORE  - 3D model - Other - 1000B-5012X-2
click to zoom

1000B-5012X Details

  • Manufacturer Part Number:

    1000B-5012X

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    iNRCORE LLC

  • YTEOL:

    6

  • Additional Feature:

    HEIGHT DIM INCLUDE TERMINAL ALSO

  • Application:

    10/100/1000 BASE-T

  • Height:

    6.48 mm

  • Isolation Voltage:

    1500 V

  • Length:

    15.49 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1

  • Width:

    13.46 mm

1000B-5012X Frequently Asked Questions (FAQs)

  • The recommended PCB layout involves placing the component on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A thermal pad on the bottom of the component should be connected to a large copper area on the PCB to facilitate heat dissipation.
  • To ensure reliable operation across the full temperature range, it's essential to follow the recommended derating guidelines, ensure proper thermal management, and use a stable and regulated power supply. Additionally, consider using a thermistor or thermocouple to monitor the component's temperature.
  • Exceeding the maximum ratings can lead to permanent damage or degradation of the component. To prevent damage, ensure that the component is operated within the specified voltage, current, and temperature ranges. Implement overvoltage protection, current limiting, and thermal monitoring to prevent excessive stress on the component.
  • To troubleshoot issues, start by verifying the power supply and input signals. Check for signs of overheating, and inspect the PCB for damage or contamination. Common failure modes include overheating, electrical overstress, and mechanical stress. Consult the datasheet and application notes for guidance on troubleshooting and failure analysis.
  • To minimize EMI and RFI, ensure proper PCB layout, use shielding, and implement filtering and decoupling techniques. Follow best practices for signal routing, and consider using EMI-absorbing materials or shielding cans. Consult the datasheet and application notes for specific guidance on EMI and RFI mitigation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1000B-5012X Overview

Use the download button to access the 1000B-5012X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1000B, or try a keyword search, such as Pulse/Datacom Transformers
