1001910000 - Weidmüller

Description: PCB terminal, 320 V, 32.5 A, Pitch in mm: 5.08, 6 mm², Number of poles: 10, Clamping yoke connection, THT solder connection, 90°, Box

Download 1001910000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1001910000 - Weidmüller - PCB symbol
click to zoom
PCB Footprints

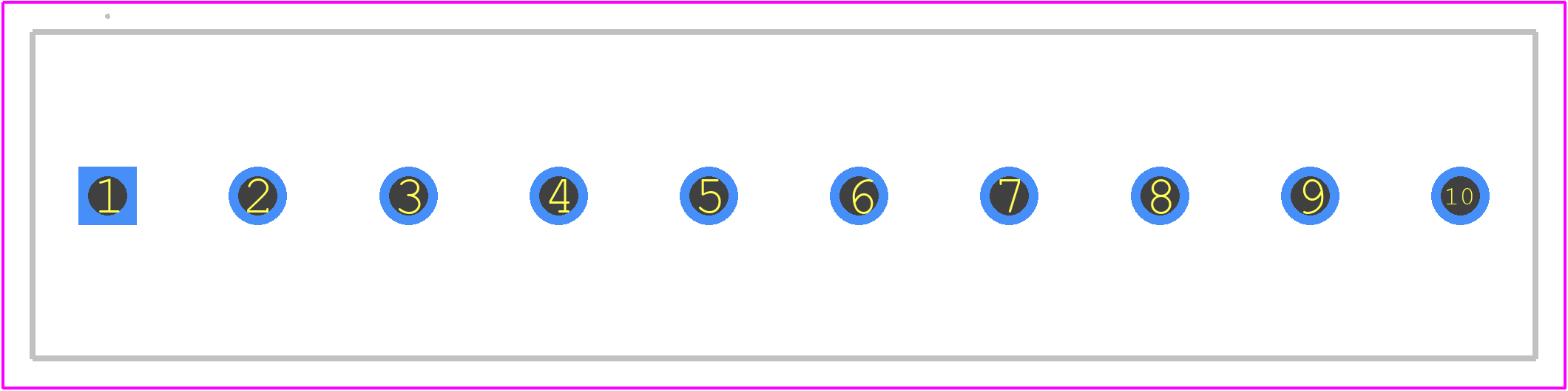

1001910000 - Weidmüller PCB footprint - Other - Other - 1001910000-2
click to zoom
3D Models
1001910000 - Weidmüller - 3D model - Other - 1001910000-2
click to zoom

1001910000 Details

  • Manufacturer Part Number:

    1001910000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Weidmüller Interface GmbH & Co. KG

  • YTEOL:

    7

  • Additional Feature:

    POLYAMIDE

  • Fastening Method:

    SCREW CLAMP

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    32 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA; IEC; UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    6 mm2

  • Wire Gauge:

    12 AWG
