1002-003-02000 - CNC Tech

Description: Conn USB 2.0 Type B F 4 POS 2mm Solder RA Thru-Hole 4 Terminal 1 Port

Download 1002-003-02000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1002-003-02000 - CNC Tech - PCB symbol
click to zoom
PCB Footprints

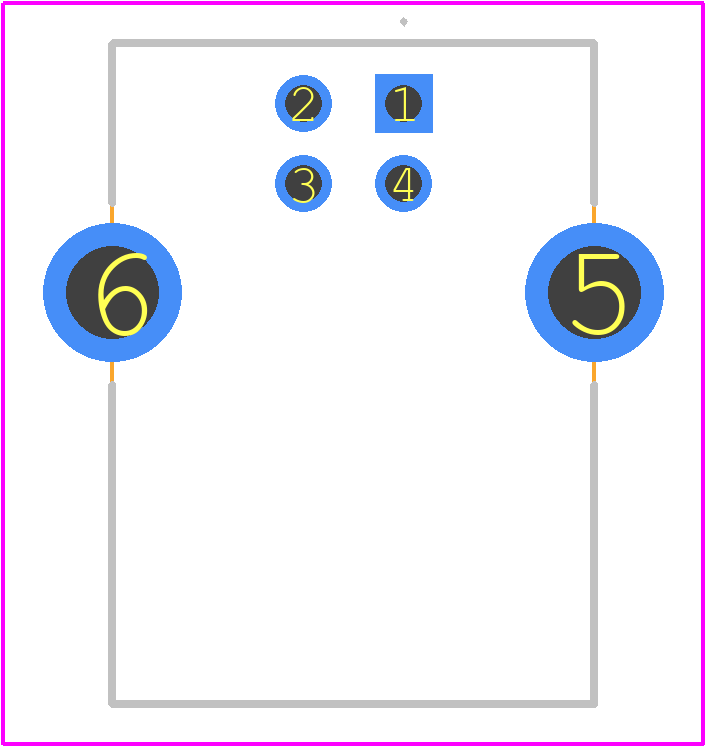

1002-003-02000 - CNC Tech PCB footprint - Other - Other - 1002-003-02000-1
click to zoom
3D Models
1002-003-02000 - CNC Tech - 3D model - Other - 1002-003-02000-1
click to zoom

1002-003-02000 Details

  • Manufacturer Part Number:

    1002-003-02000

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    CnC Tech LLC

  • Connector Type:

    USB CONNECTOR

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1002-003-02000 Frequently Asked Questions (FAQs)

  • The recommended storage condition is in a dry, cool place away from direct sunlight, with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
  • Yes, the 1002-003-02000 is designed to withstand high-vibration environments, but it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure optimal performance.
  • Yes, the 1002-003-02000 is designed to be compatible with other CnC Tech LLC products, but it's recommended to check the compatibility of specific products before integration.
  • The typical lead time for delivery of the 1002-003-02000 is 4-6 weeks, but this may vary depending on the quantity and availability of the product.
  • Yes, the 1002-003-02000 can be customized for specific applications, but it's recommended to contact CnC Tech LLC directly to discuss customization options and feasibility.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1002-003-02000 Overview

Use the download button to access the 1002-003-02000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1002-, or try a keyword search, such as Telecom and Datacom Connectors
