1003P1T1B1M2QEH footprint, schematic symbol and 3D model by E-Switch

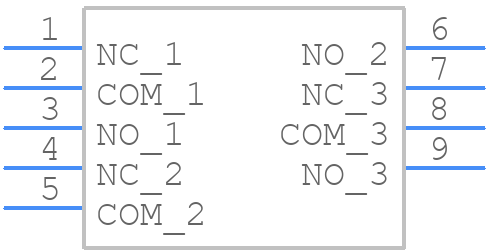

Symbol

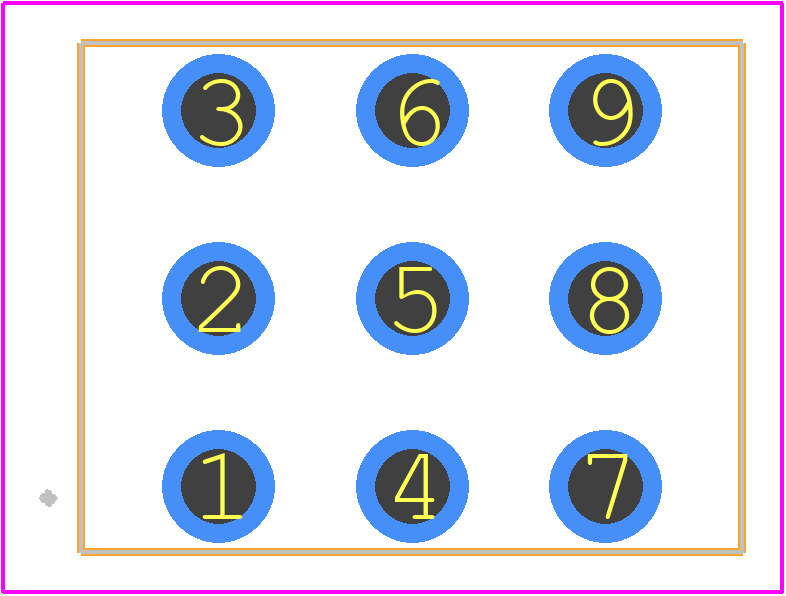

PCB Footprints

3D Models

1003P1T1B1M2QEH Details

The recommended operating temperature range for the 1003P1T1B1M2QEH is -20°C to 85°C.
Yes, the 1003P1T1B1M2QEH is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
The maximum switching frequency for the 1003P1T1B1M2QEH is 10 Hz to 100 Hz, depending on the specific application and operating conditions.
The 1003P1T1B1M2QEH does not have built-in debouncing, so external debouncing may be necessary depending on the specific application requirements.
The recommended cleaning process for the 1003P1T1B1M2QEH involves using a soft brush and a mild detergent solution, followed by a dry air blow or a soft cloth to remove any residue.

Manufacturer Collaborated

System Verified

Community Approved
