1003P1T1B4M6QE - E-Switch

Description: TOGGLE, 5A, 120VAC/28VDC 3PDT, On-On Through Hole, Right Angle

Download 1003P1T1B4M6QE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 1003P1T1B4M6QE model

Email notifications will be applied after download.

Send part feedback

Symbol

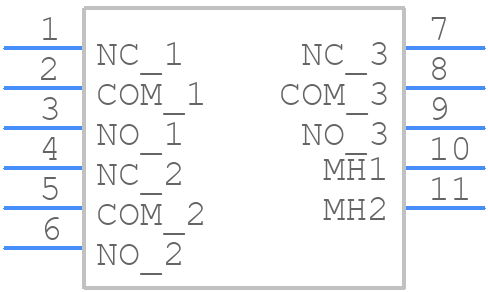

1003P1T1B4M6QE - E-Switch - PCB symbol

PCB Footprints

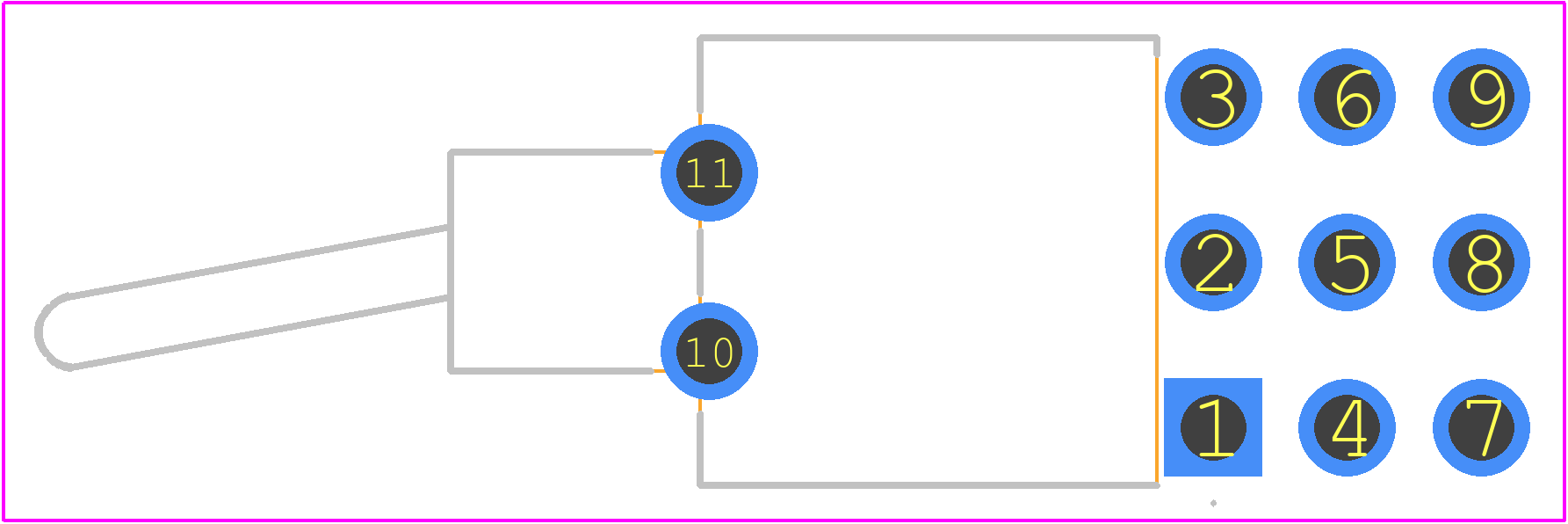

1003P1T1B4M6QE - E-Switch PCB footprint - Other - Other - 1003P1T1B4M6QE-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1003P1T1B4M6QE
Part Number 1003P1T1B4M6QE
Manufacturer E-Switch
Pin Count 11
Part Category Switch
Package Category Other
Footprint Name Other - 1003P1T1B4M6QE-2
Released Date Jan 1, 2025
Last Modified Date Dec 3, 2025 8:31 PM UTC
Pinout / Pin List Click Here (Member Only)

1003P1T1B4M6QE Details
