100AWDP1T1B1M2RE - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC DPDT, On-On Panel Mount, Through Hole

Download 100AWDP1T1B1M2RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 100AWDP1T1B1M2RE model

Email notifications will be applied after download.

Send part feedback

Symbol

100AWDP1T1B1M2RE - E-Switch - PCB symbol

PCB Footprints

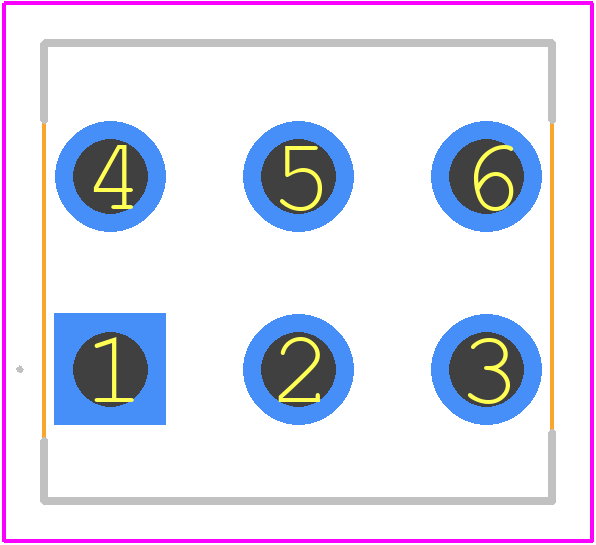

100AWDP1T1B1M2RE - E-Switch PCB footprint - Other - Other - 100AWDP1T1B1M2RE-2

3D Models

100AWDP1T1B1M2RE - E-Switch - 3D model - Other - 100AWDP1T1B1M2RE-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 100AWDP1T1B1M2RE
Part Number 100AWDP1T1B1M2RE
Manufacturer E-Switch
Pin Count 6
Part Category Switch
Package Category Other
Footprint Name Other - 100AWDP1T1B1M2RE-2
Released Date Jan 3, 2025
Last Modified Date Jan 3, 2025 5:32 AM UTC
Pinout / Pin List Click Here (Member Only)

100AWDP1T1B1M2RE Details

Manufacturer Part Number:
100AWDP1T1B1M2RE
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc
JESD-609 Code:
e4
Switch Type:
TOGGLE SWITCH
Terminal Finish:
Gold (Au)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

100AWDP1T1B1M2RE Overview

Use the download button to access the 100AWDP1T1B1M2RE schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 100AW, or try a keyword search, such as Toggle Switches
