100AWSP1T2B4VS3QE - E-Switch

100AWSP1T2B4VS3QE Details

• Manufacturer Part Number:

  100AWSP1T2B4VS3QE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  E-Switch Inc

• YTEOL:

  8

• Actuator Angle:

  25 deg

• Actuator Finish:

  CHROME

• Actuator Length:

  0.2 inch

• Actuator Material:

  BRASS

• Actuator Type:

  TOGGLE

• Additional Feature:

  BRACKET MOUNT

• Body Breadth:

  8.128 mm

• Body Height:

  16.002 mm

• Body Length or Diameter:

  15.748 mm

• Bushing Length:

  0.243 inch

• Bushing Type:

  UNTHREADED

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  SILVER

• Contact (AC) Max Rating R Load:

  2A@250VAC

• Contact Current(AC)-Max:

  2 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Rating R Load:

  5A@28VDC

• Contact Function:

  ON-ON

• Contact Resistance:

  0.01 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  28 V

• Dielectric Withstand Volts:

  1000VRMS V

• Electrical Life:

  30000 Cycle(s)

• End Contact Material:

  COPPER ALLOY

• End Contact Plating:

  GOLD OVER SILVER

• Illumination:

  NON-ILLUMINATED

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -30 °C

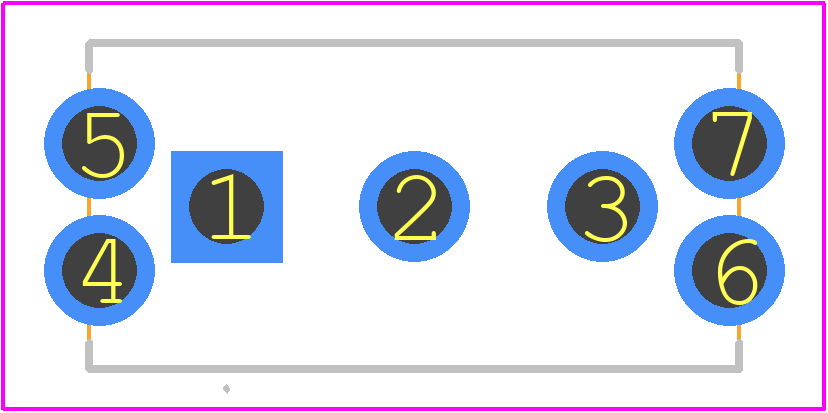

• PCB Hole Count:

  7

• Sealing:

  EPOXY

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  SPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  Gold Flash (Au) - with Silver (Ag) barrier

• Terminal Length:

  0.185 inch

• Terminal Material:

  COPPER ALLOY

• Termination Type:

  SOLDER
