100B-1003XNL - iNRCORE

Description: Audio Transformers / Signal Transformers EXTMP XFMR 100BT SMG COM PBC

Download 100B-1003XNL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

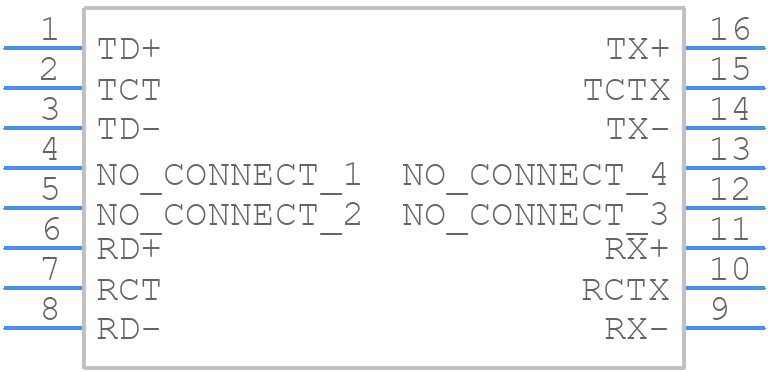

100B-1003XNL - iNRCORE - PCB symbol
click to zoom
PCB Footprints
100B-1003XNL - iNRCORE PCB footprint - Other - Other - 100B-1003XNL-8
click to zoom
3D Models
100B-1003XNL - iNRCORE - 3D model - Other - 100B-1003XNL-8
click to zoom

100B-1003XNL Details

  • Manufacturer Part Number:

    100B-1003XNL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    iNRCORE LLC

  • YTEOL:

    7.05

  • Application:

    10/100 BASE-TX

  • Approvals:

    IEEE

  • Height:

    6.22 mm

  • Isolation Voltage:

    1500 V

  • JESD-609 Code:

    e3

  • Length:

    12.95 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    BULK

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Transformer Type:

    DATACOM TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:1;1:1

  • Width:

    6.98 mm

100B-1003XNL Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 100B-1003XNL is -40°C to 85°C.
  • To ensure reliable connections, make sure to follow the recommended soldering profile, use a solder with a melting point above 217°C, and avoid applying excessive mechanical stress to the connectors.
  • The maximum current rating for the 100B-1003XNL is 1.5A per pin, but it's recommended to derate the current based on the ambient temperature and other environmental factors.
  • Yes, the 100B-1003XNL is designed to withstand high-vibration environments, but it's essential to follow the recommended mounting and securing guidelines to ensure reliable operation.
  • To troubleshoot connectivity issues, check the solder joints for any defects, verify the correct pinout and orientation, and ensure that the connectors are properly seated and secured.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

100B-1003XNL Overview

Use the download button to access the 100B-1003XNL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 100B-, or try a keyword search, such as Pulse/Datacom Transformers
