100DP1T1B1M2QE - E-Switch

Description: TOGGLE, 5A, 120VAC/28VDC DPDT, On-On Panel Mount, Through Hole

Download 100DP1T1B1M2QE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
100DP1T1B1M2QE - E-Switch - PCB symbol
click to zoom
PCB Footprints

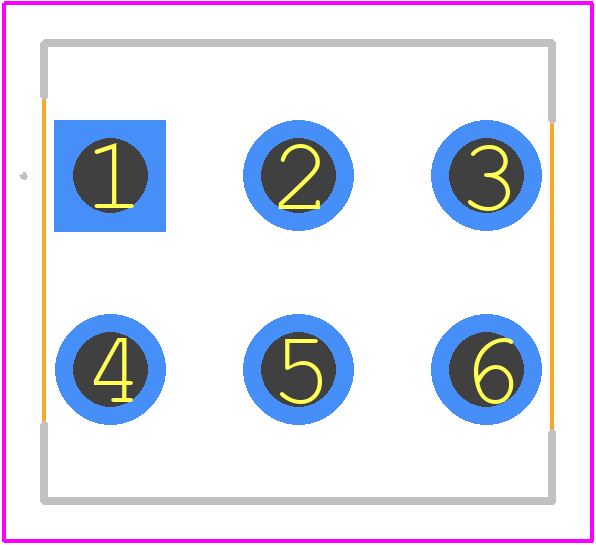

100DP1T1B1M2QE - E-Switch PCB footprint - Other - Other - 100DP1T1B1M2QE-1
click to zoom
3D Models
100DP1T1B1M2QE - E-Switch - 3D model - Other - 100DP1T1B1M2QE-1
click to zoom

100DP1T1B1M2QE Details

  • Manufacturer Part Number:

    100DP1T1B1M2QE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    8

  • Switch Type:

    TOGGLE SWITCH
