100DP1T1B1M6QEH footprint, schematic symbol and 3D model by E-Switch

Symbol

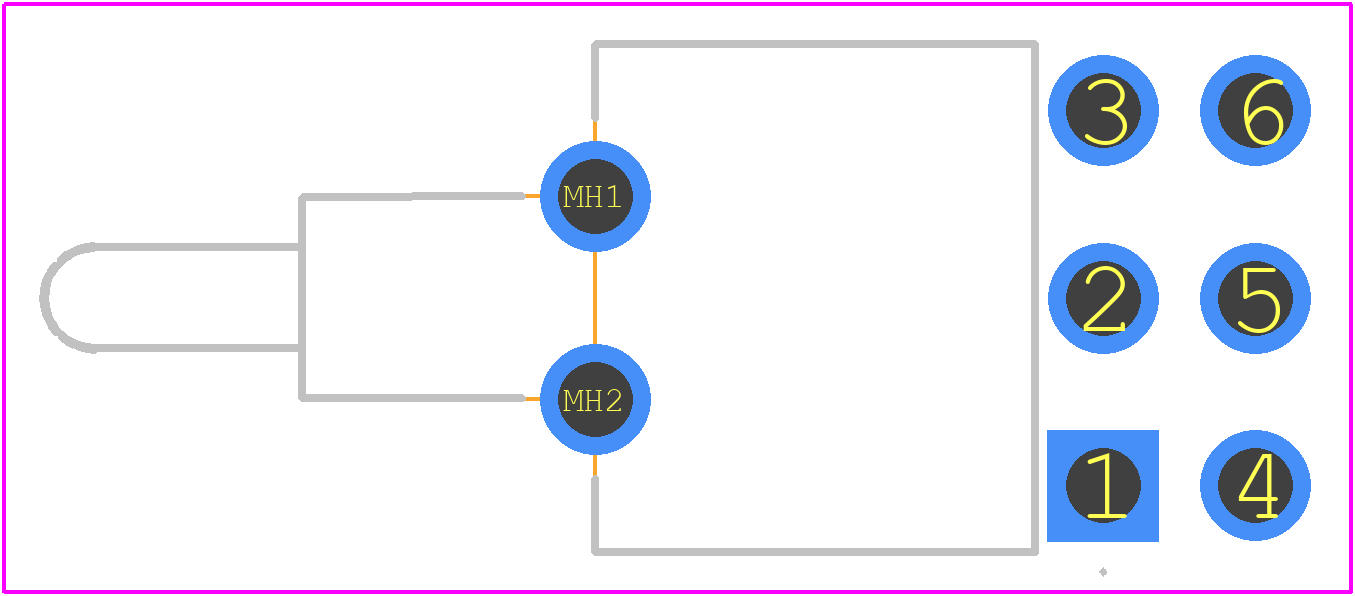

PCB Footprints

3D Models

100DP1T1B1M6QEH Details

The recommended operating temperature range for the 100DP1T1B1M6QEH switch is -20°C to 85°C.
Yes, the 100DP1T1B1M6QEH switch is designed for high-reliability applications and meets the requirements of various industry standards, including MIL-STD-202 and IEC 61076-2-1.
The expected lifespan of the 100DP1T1B1M6QEH switch is typically in the range of 10,000 to 50,000 cycles, depending on the operating conditions and usage.
Yes, the 100DP1T1B1M6QEH switch is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
The recommended cleaning and maintenance procedure for the 100DP1T1B1M6QEH switch involves using a soft brush and a mild detergent solution to remove any dirt or debris, followed by a dry air blow to remove any moisture.
