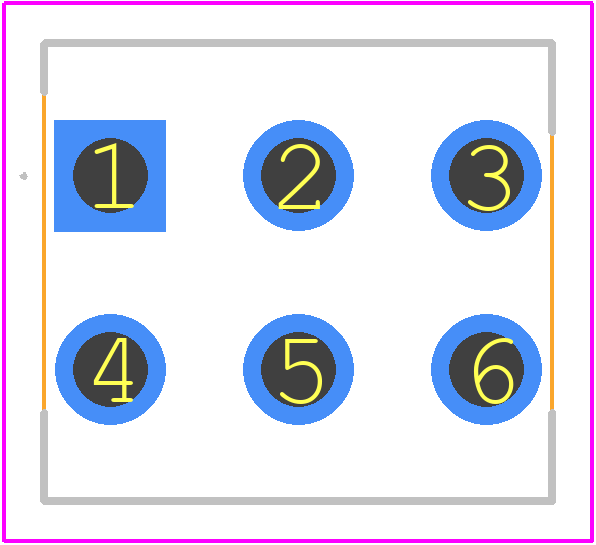

100DP1T2B3M2QEH footprint, schematic symbol and 3D model by E-Switch

Symbol

PCB Footprints

3D Models

100DP1T2B3M2QEH Details

The recommended operating temperature range for the 100DP1T2B3M2QEH switch is -20°C to 85°C.
Yes, the 100DP1T2B3M2QEH switch is designed for high-reliability applications and meets the requirements of various industry standards, including MIL-STD-202 and IEC 61076-2-1.
The expected lifespan of the 100DP1T2B3M2QEH switch is 1 million cycles, making it suitable for applications that require long-term reliability.
Yes, the 100DP1T2B3M2QEH switch is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
The recommended cleaning process for the 100DP1T2B3M2QEH switch involves using a soft brush and a mild detergent solution, followed by a dry air blow to remove any residue.
