100DP1T2B3M2REH - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC DPDT, On-On Panel Mount, Through Hole

Download 100DP1T2B3M2REH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
100DP1T2B3M2REH - E-Switch - PCB symbol
click to zoom
PCB Footprints

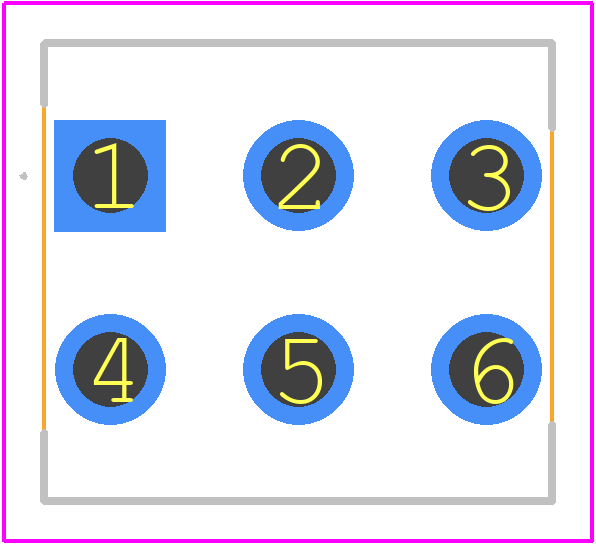

100DP1T2B3M2REH - E-Switch PCB footprint - Other - Other - 100DP1T2B3M2REH-1
click to zoom
3D Models
100DP1T2B3M2REH - E-Switch - 3D model - Other - 100DP1T2B3M2REH-1
click to zoom

100DP1T2B3M2REH Details

  • Manufacturer Part Number:

    100DP1T2B3M2REH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    7

  • Switch Type:

    TOGGLE SWITCH

100DP1T2B3M2REH Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 100DP1T2B3M2REH switch is -20°C to 85°C.
  • Yes, the 100DP1T2B3M2REH switch is designed for high-reliability applications, with a lifespan of up to 10,000 cycles and a low contact resistance of 10mΩ max.
  • Yes, the 100DP1T2B3M2REH switch is designed to operate in harsh environments, with a rating of IP67 for dust and water resistance.
  • The actuation force required to operate the 100DP1T2B3M2REH switch is 1.5N ± 0.5N.
  • Yes, the 100DP1T2B3M2REH switch is compliant with RoHS and REACH regulations, making it suitable for use in EU and other regions with similar regulations.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

100DP1T2B3M2REH Overview

Use the download button to access the 100DP1T2B3M2REH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 100DP, or try a keyword search, such as Toggle Switches
