100DP1T6B12M7RE - E-Switch

100DP1T6B12M7RE Details

• Manufacturer Part Number:

  100DP1T6B12M7RE

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.65

• Manufacturer:

  E-Switch Inc

• YTEOL:

  8

• Actuator Length:

  0.484 inch

• Actuator Type:

  FLAT TYPE

• Body Breadth:

  13.2 mm

• Body Height:

  12.7 mm

• Body Length or Diameter:

  11.43 mm

• Bushing Length:

  0.297 inch

• Bushing Type:

  UNTHREADED

• Contact Current(AC)-Max:

  0.02 A

• Contact Current(DC)-Max:

  0.02 A

• Contact Voltage(AC)-Max:

  20 V

• Contact Voltage(DC)-Max:

  20 V

• Illumination:

  NON-ILLUMINATED

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

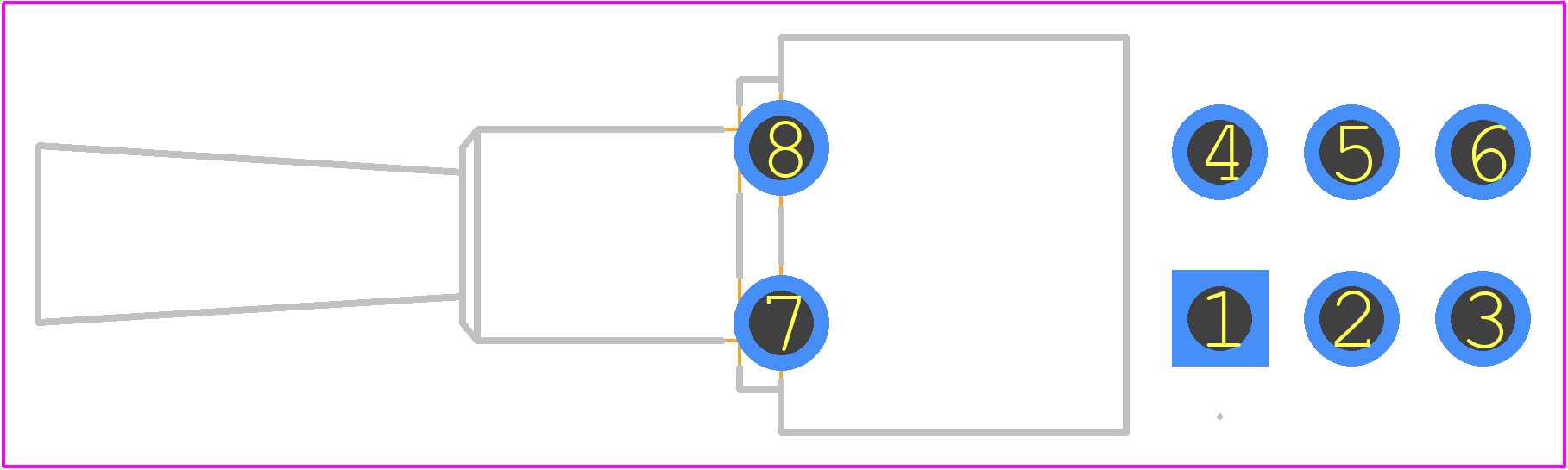

• PCB Hole Count:

  8

• Surface Mount:

  NO

• Switch Action:

  LATCHED

• Switch Function:

  DPDT

• Switch Type:

  TOGGLE SWITCH

• Terminal Finish:

  Gold (Au)

• Termination Type:

  SOLDER
