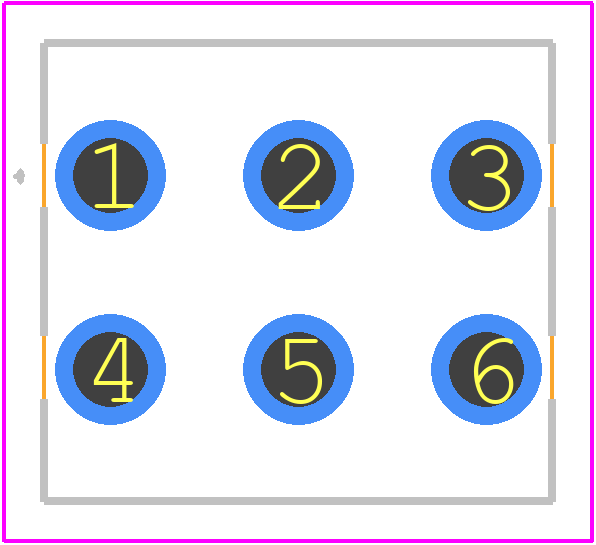

100DP1T6B15M2QEH footprint, schematic symbol and 3D model by E-Switch

Symbol

PCB Footprints

3D Models

100DP1T6B15M2QEH Details

The operating temperature range of the 100DP1T6B15M2QEH switch is -20°C to 85°C.
Yes, the 100DP1T6B15M2QEH switch is designed for high-reliability applications and meets the requirements of MIL-PRF-39012.
The expected lifespan of the 100DP1T6B15M2QEH switch is 1,000,000 cycles minimum.
Yes, the 100DP1T6B15M2QEH switch is compatible with lead-free soldering processes and meets the requirements of RoHS and REACH directives.
The maximum voltage rating of the 100DP1T6B15M2QEH switch is 15VDC.
