100DP6T1B4M7RE - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC DPDT, On-On-On Through Hole, Right Angle, Vertical

Download 100DP6T1B4M7RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

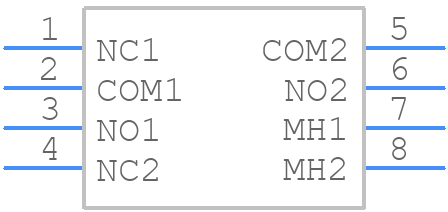

100DP6T1B4M7RE - E-Switch - PCB symbol
click to zoom
PCB Footprints

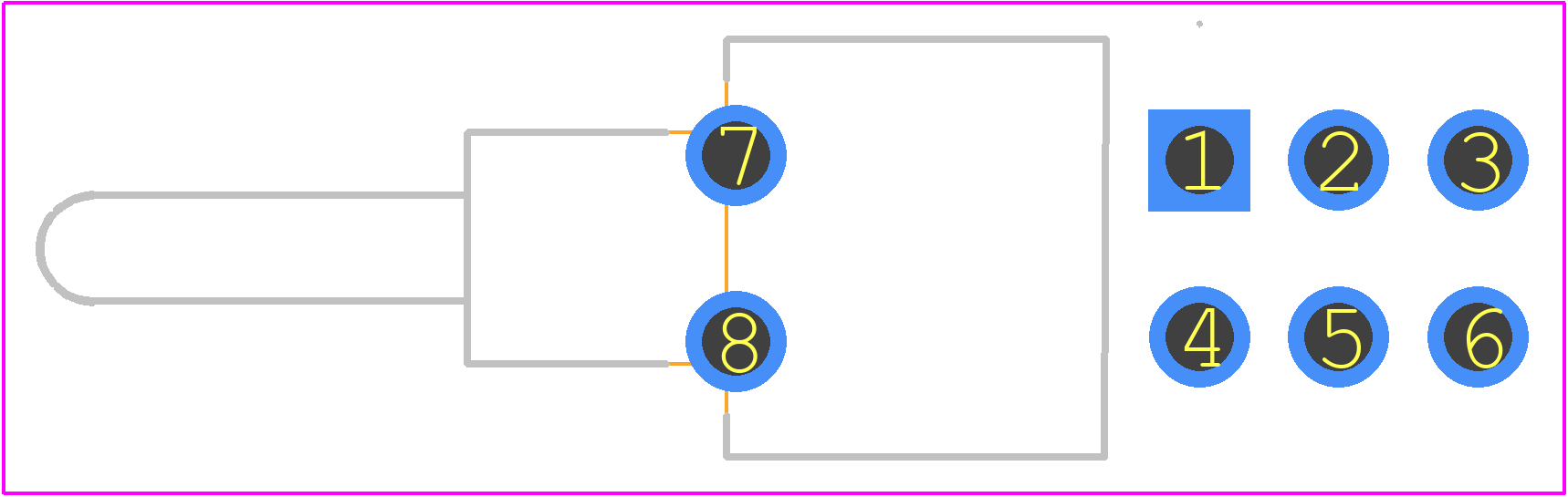

100DP6T1B4M7RE - E-Switch PCB footprint - Other - Other - 100DP6T1B4M7RE-1
click to zoom
3D Models
100DP6T1B4M7RE - E-Switch - 3D model - Other - 100DP6T1B4M7RE-1
click to zoom

100DP6T1B4M7RE Details

  • Manufacturer Part Number:

    100DP6T1B4M7RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    7

  • Switch Type:

    TOGGLE SWITCH

100DP6T1B4M7RE Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 100DP6T1B4M7RE is -20°C to 85°C.
  • Yes, the 100DP6T1B4M7RE is designed for high-reliability applications, with a lifespan of up to 10,000 cycles and a low contact resistance of 10mΩ max.
  • Yes, the 100DP6T1B4M7RE is designed to operate in harsh environments, with a rating of IP67 for dust and water resistance.
  • The maximum voltage rating for the 100DP6T1B4M7RE is 12VDC.
  • Yes, the 100DP6T1B4M7RE is RoHS and REACH compliant, making it suitable for use in European Union markets.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

100DP6T1B4M7RE Overview

Use the download button to access the 100DP6T1B4M7RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 100DP, or try a keyword search, such as Toggle Switches
