100SP1T1B1VS2QEH - E-Switch

Description: TOGGLE, 5A, 120VAC/28VDC SPDT, On-On Panel Mount, Through Hole

Download 100SP1T1B1VS2QEH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
100SP1T1B1VS2QEH - E-Switch - PCB symbol
click to zoom
PCB Footprints

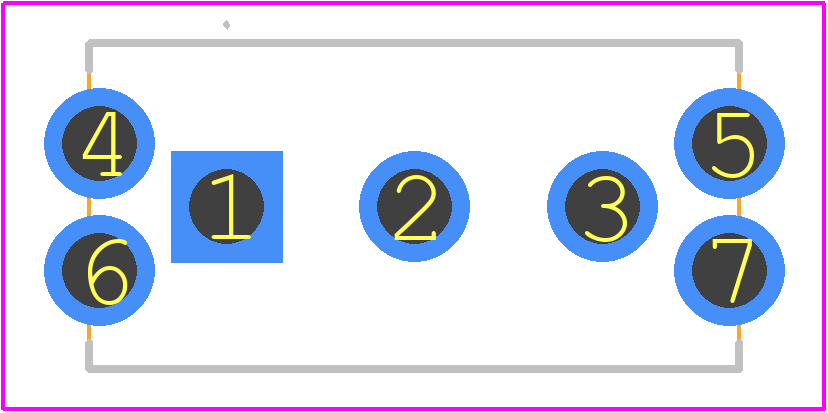

100SP1T1B1VS2QEH - E-Switch PCB footprint - Other - Other - 100SP1T1B1VS2QEH-1
click to zoom
3D Models
100SP1T1B1VS2QEH - E-Switch - 3D model - Other - 100SP1T1B1VS2QEH-1
click to zoom

100SP1T1B1VS2QEH Details

  • Manufacturer Part Number:

    100SP1T1B1VS2QEH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    7

  • Switch Type:

    TOGGLE SWITCH

100SP1T1B1VS2QEH Frequently Asked Questions (FAQs)

  • The operating temperature range of the 100SP1T1B1VS2QEH switch is -40°C to 85°C.
  • Yes, the 100SP1T1B1VS2QEH switch is designed for high-reliability applications and meets the requirements of MIL-STD-202 and IEC 61076-2-1.
  • The contact resistance of the 100SP1T1B1VS2QEH switch is typically less than 20 mΩ.
  • Yes, the 100SP1T1B1VS2QEH switch is designed to operate in harsh environments and can withstand exposure to moisture, vibration, and shock.
  • The insulation resistance of the 100SP1T1B1VS2QEH switch is typically greater than 100 MΩ at 500 VDC.
