100SP1T2B3M6RE - E-Switch

Description: TACT, 50mA, 12VDC SPST-NO, Off-(On), Surface Mount

Download 100SP1T2B3M6RE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
100SP1T2B3M6RE - E-Switch - PCB symbol
click to zoom
PCB Footprints

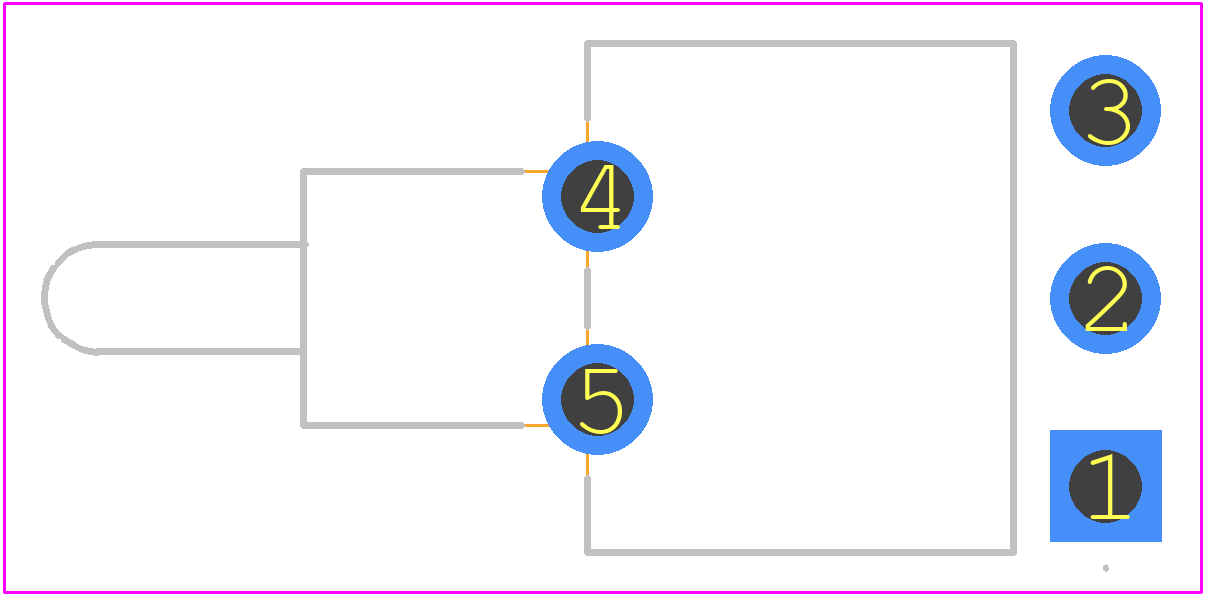

100SP1T2B3M6RE - E-Switch PCB footprint - Other - Other - 100SP1T2B3M6RE-2
click to zoom
3D Models
100SP1T2B3M6RE - E-Switch - 3D model - Other - 100SP1T2B3M6RE-2
click to zoom

100SP1T2B3M6RE Details

  • Manufacturer Part Number:

    100SP1T2B3M6RE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    7

  • Switch Type:

    TOGGLE SWITCH

100SP1T2B3M6RE Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 100SP1T2B3M6RE switch is -20°C to 85°C.
  • Yes, the 100SP1T2B3M6RE switch is designed for high-reliability applications and meets the requirements of MIL-PRF-39012.
  • The maximum voltage rating for the 100SP1T2B3M6RE switch is 12VDC.
  • Yes, the 100SP1T2B3M6RE switch is designed to operate in humid environments and meets the requirements of MIL-STD-202, Method 106.
  • The typical actuation force required to operate the 100SP1T2B3M6RE switch is 2.5 N (250 gf).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

100SP1T2B3M6RE Overview

Use the download button to access the 100SP1T2B3M6RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 100SP, or try a keyword search, such as Toggle Switches
