The recommended soldering temperature is 250°C (482°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.
Yes, the 100SP1T2B4M6RE is compatible with lead-free soldering processes. However, it's crucial to ensure that the soldering temperature and time are within the recommended specifications to prevent damage to the switch.
The maximum operating frequency of the 100SP1T2B4M6RE switch is 1 MHz. Operating the switch above this frequency may result in reduced performance and reliability.
Yes, the 100SP1T2B4M6RE switch is designed to withstand high-vibration and high-shock environments. However, it's essential to ensure that the switch is properly mounted and secured to prevent damage or malfunction.
Yes, the 100SP1T2B4M6RE switch is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in a wide range of applications.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
100SP1T2B4M6RE Overview

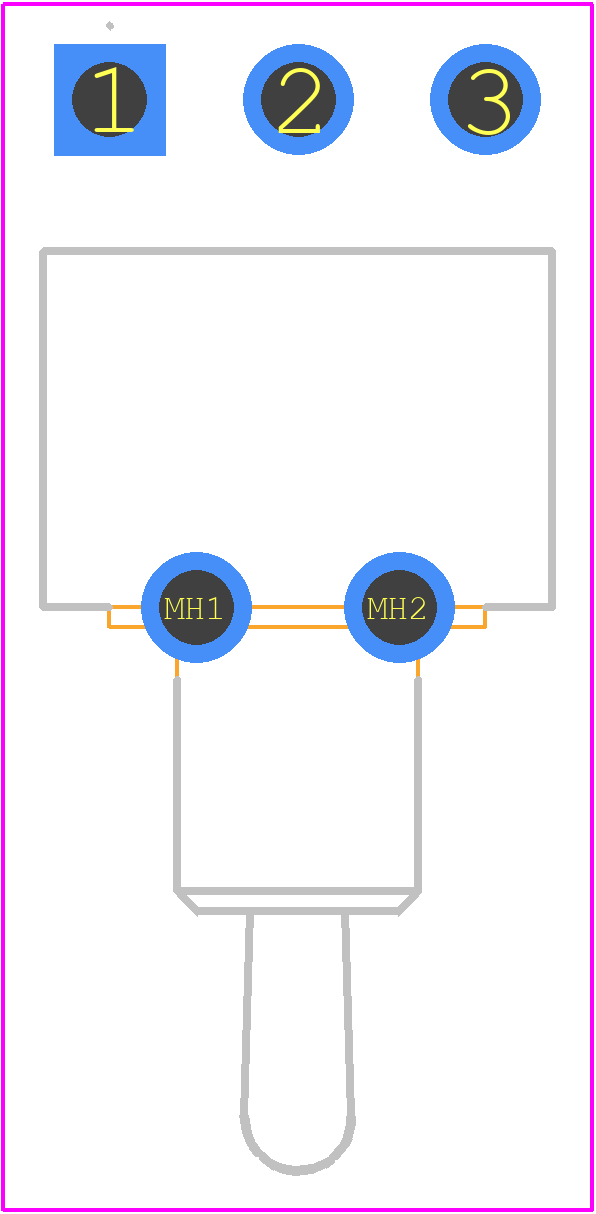

Use the download button to access the 100SP1T2B4M6RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 100SP,
or try a keyword search, such as Toggle Switches
