The recommended operating temperature range is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the switch's performance and lifespan may be affected if operated outside this range for extended periods.
To ensure the switch's contacts are clean and free of contaminants, it's recommended to handle the switch by the body, avoiding touching the contacts or actuator. Additionally, use a soft, dry brush or a lint-free cloth to gently clean the contacts if necessary. Avoid using chemicals or solvents, as they may damage the switch's components.
The maximum switching frequency for the 100SP1T2B4VS2RE is not explicitly stated in the datasheet. However, as a general guideline, E-Switch recommends a maximum switching frequency of 20-30 cycles per minute for their switches. Exceeding this frequency may lead to premature wear and reduced lifespan.
While the 100SP1T2B4VS2RE is designed to be rugged and reliable, it's essential to consider the vibration specifications in your application. E-Switch recommends consulting their application notes and vibration testing guidelines to ensure the switch can withstand the specific vibration levels in your environment.
To determine the correct actuator orientation, consider the direction of the actuating force, the available space, and the desired switching action. Consult the datasheet and E-Switch's application notes for guidance on actuator orientation and switching characteristics.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
100SP1T2B4VS2RE Overview

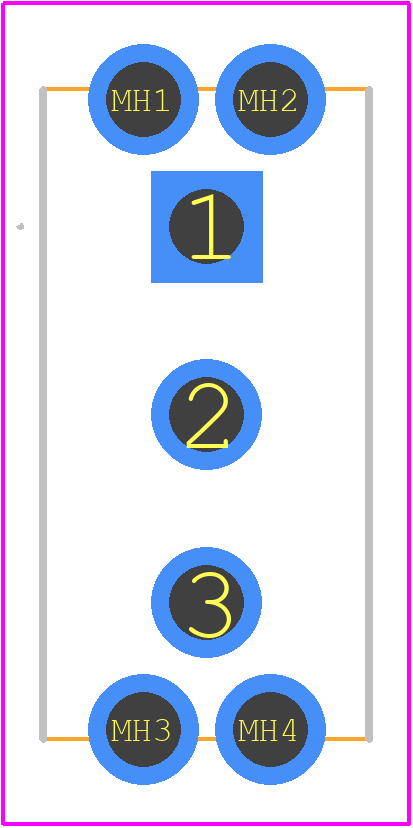

Use the download button to access the 100SP1T2B4VS2RE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 100SP,
or try a keyword search, such as Toggle Switches
