100SP1T4B9VS3RE - E-Switch

Description: TACT, 50mA, 12VDC SPST-NO, Off-(On), Surface Mount

Download 100SP1T4B9VS3RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 100SP1T4B9VS3RE model

Email notifications will be applied after download.

Send part feedback

Symbol

100SP1T4B9VS3RE - E-Switch - PCB symbol

PCB Footprints

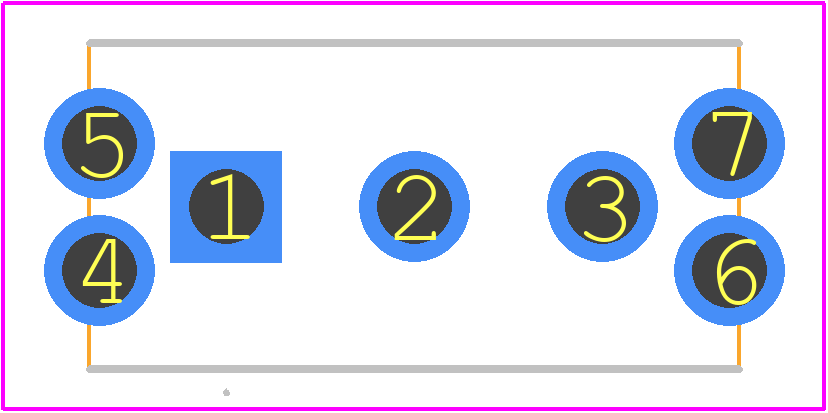

100SP1T4B9VS3RE - E-Switch PCB footprint - Other - Other - 100SP1(vs3/41.58)-2025-2

3D Models

100SP1T4B9VS3RE - E-Switch - 3D model - Other - 100SP1(vs3/41.58)-2025-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 100SP1T4B9VS3RE
Part Number 100SP1T4B9VS3RE
Manufacturer E-Switch
Pin Count 7
Part Category Switch
Package Category Other
Footprint Name Other - 100SP1(vs3/41.58)-2025-2
Released Date May 5, 2025
Last Modified Date Jul 25, 2026 1:05 PM UTC
Pinout / Pin List Click Here (Member Only)

100SP1T4B9VS3RE Details

Manufacturer Part Number:
100SP1T4B9VS3RE
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc
JESD-609 Code:
e4
Switch Type:
TOGGLE SWITCH
Terminal Finish:
GOLD OVER NICKEL
