100SP3T6B12M7RE - E-Switch

Description: TOGGLE, 0.4VA, 20VAC/VDC SPDT, On-Off-On Through Hole, Right Angle, Vertical

Download 100SP3T6B12M7RE Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 100SP3T6B12M7RE model

Email notifications will be applied after download.

Send part feedback

Symbol

100SP3T6B12M7RE - E-Switch - PCB symbol

PCB Footprints

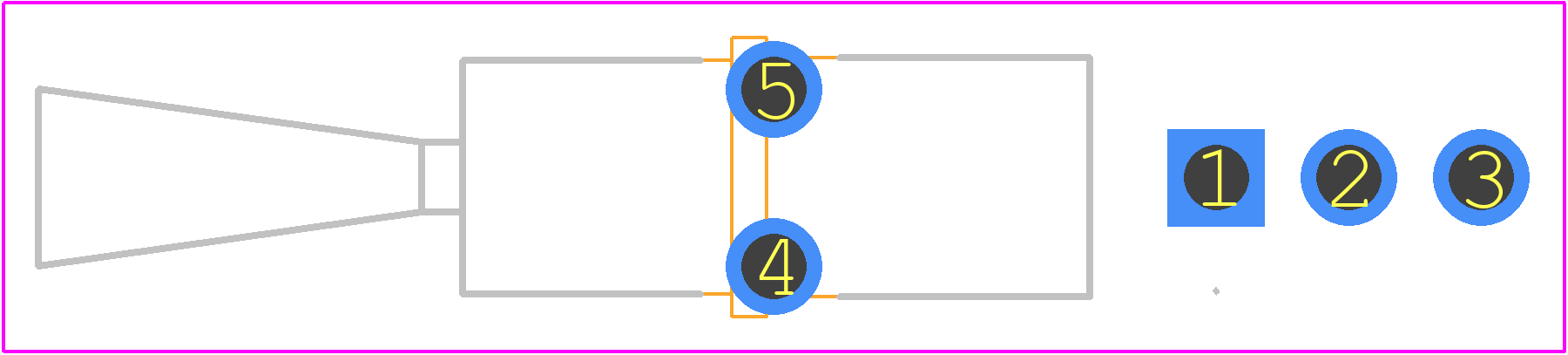

100SP3T6B12M7RE - E-Switch PCB footprint - Other - Other - 100SP3T6B12M7RE-3

Datasheet Download Datasheet
Stock & Prices Price & Stock for 100SP3T6B12M7RE
Part Number 100SP3T6B12M7RE
Manufacturer E-Switch
Pin Count 5
Part Category Switch
Package Category Other
Footprint Name Other - 100SP3T6B12M7RE-3
Released Date Aug 27, 2025
Last Modified Date Dec 4, 2025 3:48 AM UTC
Pinout / Pin List Click Here (Member Only)

100SP3T6B12M7RE Details

Manufacturer Part Number:
100SP3T6B12M7RE
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China
ECCN Code:
EAR99
HTS Code:
8536.50.70.00
Manufacturer:
E-Switch Inc
JESD-609 Code:
e4
Switch Type:
TOGGLE SWITCH
Terminal Finish:
Gold (Au)

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

100SP3T6B12M7RE Overview

Use the download button to access the 100SP3T6B12M7RE schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 100SP, or try a keyword search, such as Toggle Switches
