100SP3T8B13VS2REH - E-Switch

Description: TACT, 50mA, 12VDC SPST-NO, Off-(On), Through Hole

Download 100SP3T8B13VS2REH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
100SP3T8B13VS2REH - E-Switch - PCB symbol
click to zoom
PCB Footprints

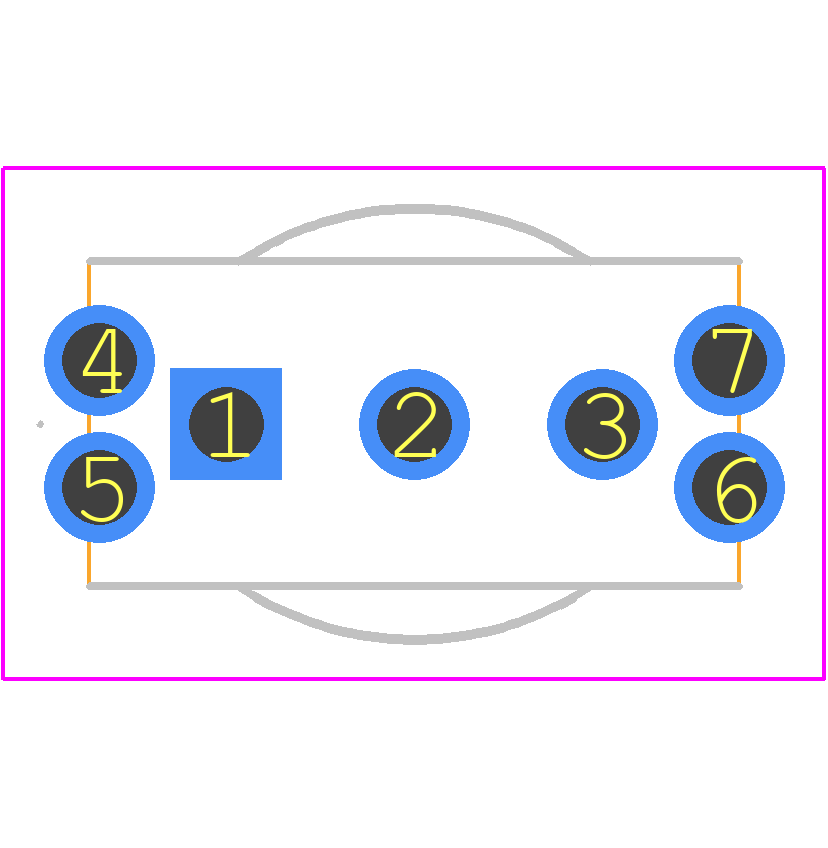

100SP3T8B13VS2REH - E-Switch PCB footprint - Other - Other - 16.26mm x8.13mm
click to zoom
3D Models
100SP3T8B13VS2REH - E-Switch - 3D model - Other - 16.26mm x8.13mm
click to zoom

100SP3T8B13VS2REH Details

  • Manufacturer Part Number:

    100SP3T8B13VS2REH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    E-Switch Inc

  • YTEOL:

    7

  • Switch Type:

    TOGGLE SWITCH

100SP3T8B13VS2REH Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 100SP3T8B13VS2REH switch is -40°C to 85°C.
  • Yes, the 100SP3T8B13VS2REH switch is designed for high-reliability applications and meets the requirements of MIL-PRF-39012.
  • The typical actuation force required to operate the 100SP3T8B13VS2REH switch is 2.5 N (newton) ± 1 N.
  • Yes, the 100SP3T8B13VS2REH switch is compatible with lead-free soldering processes and meets the requirements of RoHS and REACH directives.
  • The maximum voltage rating for the 100SP3T8B13VS2REH switch is 12 VDC.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

100SP3T8B13VS2REH Overview

Use the download button to access the 100SP3T8B13VS2REH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 100SP, or try a keyword search, such as Toggle Switches
