The recommended soldering temperature is 250°C (482°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the switch.
No, the 100SP5T2B4M6RE should not be washed or cleaned with solvents, as it may damage the switch's internal components. Instead, use a soft, dry brush to gently remove any debris or contaminants.
The 100SP5T2B4M6RE operates within a temperature range of -20°C to 85°C (-4°F to 185°F). Operating outside this range may affect the switch's performance and lifespan.
Yes, the 100SP5T2B4M6RE is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature to ensure reliable connections.
The recommended torque specification for the 100SP5T2B4M6RE's actuator is 0.15 N·m (1.33 lb·in) maximum. Exceeding this torque may damage the switch or its actuator.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
100SP5T2B4M6RE Overview

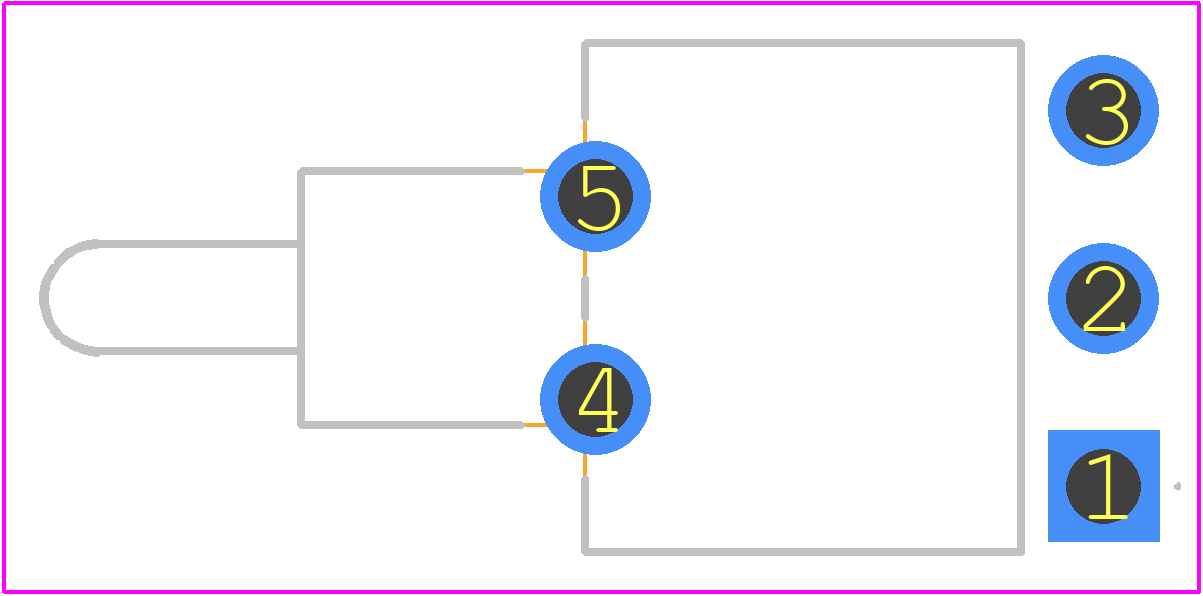

Use the download button to access the 100SP5T2B4M6RE schematic symbol, PCB footprint, and 3D model.
