100VXG2200MEFCSN30X40 - Rubycon

Description: Aluminum Electrolytic Capacitors - Snap In LONG LIFE ALUMINUM ELECTROLYTIC CAPACITORS

Download 100VXG2200MEFCSN30X40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
100VXG2200MEFCSN30X40 - Rubycon - PCB symbol
click to zoom
PCB Footprints

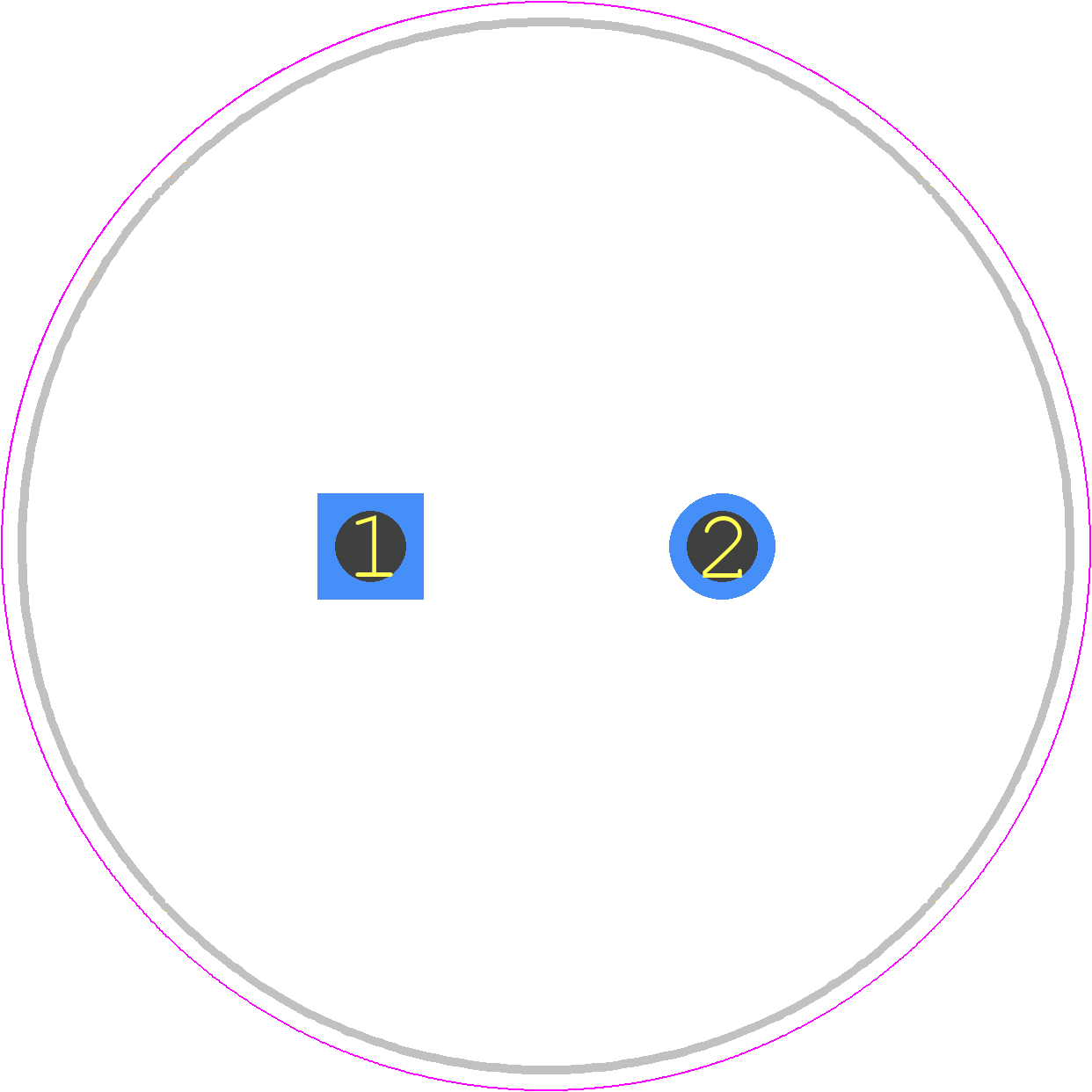

100VXG2200MEFCSN30X40 - Rubycon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30X40
click to zoom
3D Models
100VXG2200MEFCSN30X40 - Rubycon - 3D model - Capacitor, Polarized Radial Diameter - 30X40
click to zoom

100VXG2200MEFCSN30X40 Details

  • Manufacturer Part Number:

    100VXG2200MEFCSN30X40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Rubycon Corporation

  • YTEOL:

    6

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.40712 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    2520 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

100VXG2200MEFCSN30X40 Frequently Asked Questions (FAQs)

  • Rubycon recommends derating the voltage by 10-20% to ensure reliable operation and extend the lifespan of the capacitor.
  • The 100VXG2200MEFCSN30X40 is designed to operate up to 125°C, but Rubycon recommends reducing the voltage rating by 1.25% for every 1°C above 85°C to ensure reliability.
  • The ESR of the 100VXG2200MEFCSN30X40 is not explicitly stated in the datasheet, but Rubycon's general guideline for XG series capacitors is an ESR of around 0.02Ω to 0.05Ω at 100 kHz.
  • The 100VXG2200MEFCSN30X40 is designed for general-purpose use, but it can be used in high-frequency applications up to 100 kHz. However, Rubycon recommends consulting their application notes for high-frequency design considerations.
  • Rubycon recommends a soldering temperature of 250°C to 260°C and a soldering time of 3 to 5 seconds to prevent damage to the capacitor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

100VXG2200MEFCSN30X40 Overview

Use the download button to access the 100VXG2200MEFCSN30X40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 100VX, or try a keyword search, such as Aluminum Electrolytic Capacitors
