1010056564 - Amphenol

Description: Memory Card Connectors SD Connector 15 Pin PCB Gold

Download 1010056564 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

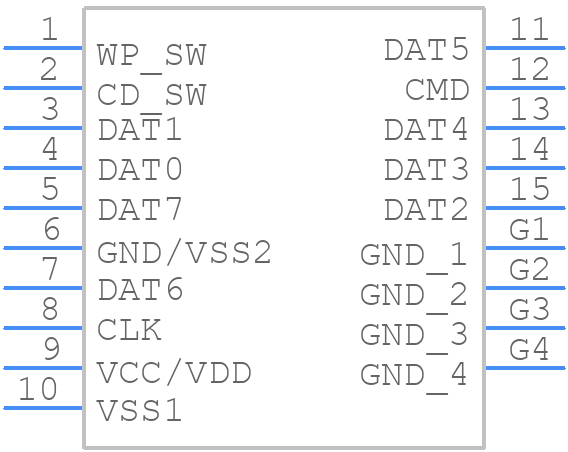

1010056564 - Amphenol - PCB symbol
click to zoom
PCB Footprints

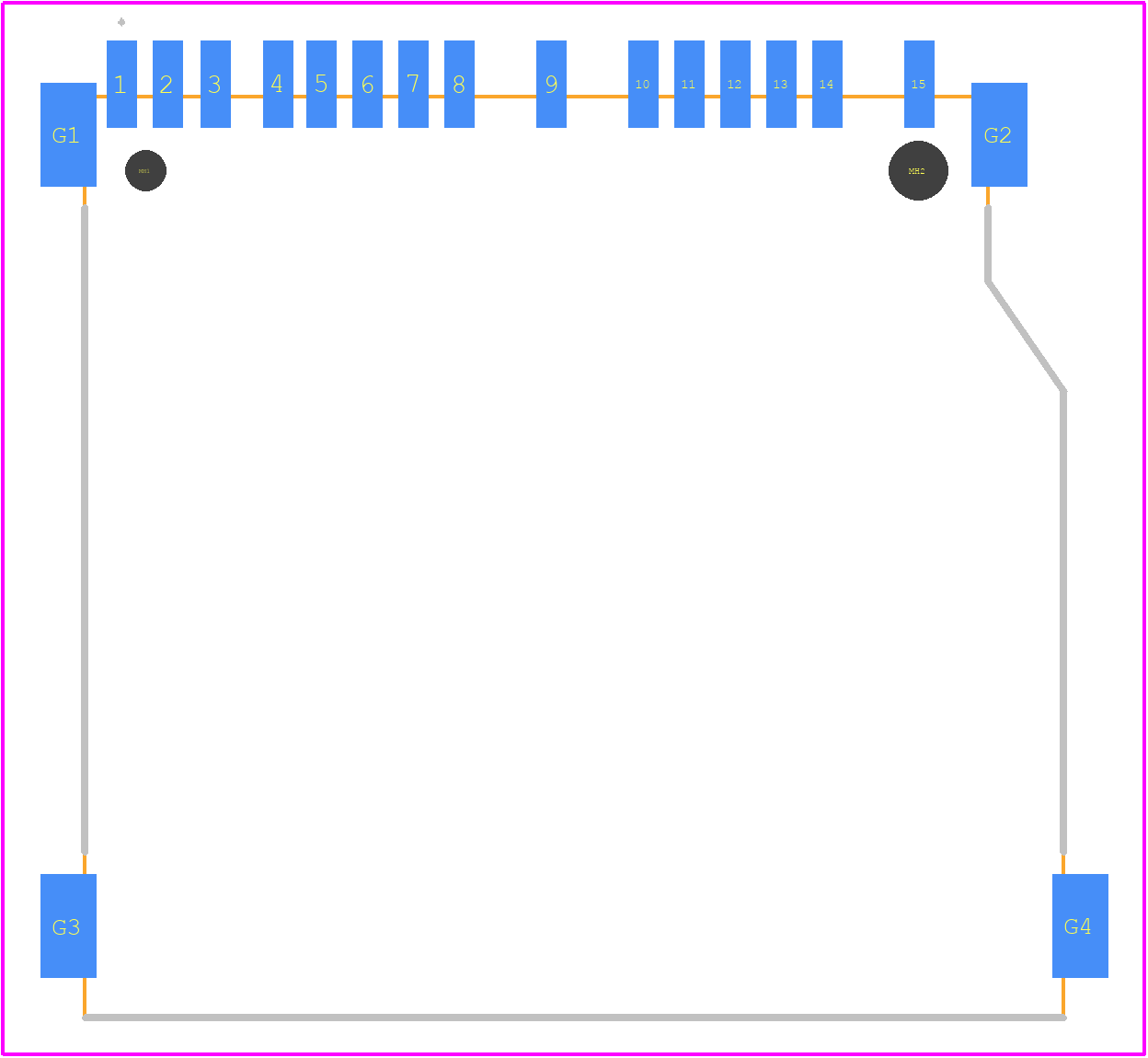

1010056564 - Amphenol PCB footprint - Other - Other - 1010056564-2
click to zoom
3D Models
1010056564 - Amphenol - 3D model - Other - 1010056564-2
click to zoom

1010056564 Details

  • Manufacturer Part Number:

    1010056564

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    0

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    GOLD (1) OVER NICKEL (50)

  • Contact Finish Termination:

    TIN (160) OVER NICKEL (50)

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Number Of Connectors:

    ONE

  • Option:

    GENERAL PURPOSE

1010056564 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the specific application requirements and follow the recommended torque values to ensure reliable connections.
  • Yes, the 1010056564 connector is designed to withstand high-vibration environments. Amphenol Corporation's connectors are built with ruggedness and reliability in mind, making them suitable for applications with high vibration, shock, and extreme temperatures.
  • The operating temperature range for the 1010056564 connector is -55°C to 125°C (-133°F to 257°F). However, it's essential to consult the specific application requirements and ensure the connector is used within the recommended temperature range to maintain reliability and performance.
  • Yes, the 1010056564 connector is designed to withstand harsh environments, including high humidity and salt spray. Amphenol Corporation's connectors are built with corrosion-resistant materials and have a protective coating to ensure reliable performance in demanding environments.
  • The 1010056564 connector is designed for signal integrity and can support high-speed data transmission applications. However, it's essential to consult the specific application requirements and ensure the connector is used within the recommended frequency range to maintain signal integrity and performance.
