1017523 - Phoenix Contact

Description: TDPT 4/ 4-SP-6,35-ZB - Printed circuit board terminal, nominal current: 41 A, rated voltage (III/2): 1000 V, nominal cross section: 4 mm<sup>2</sup>, number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: TDPT 4/..-SP, pitch: 6.35 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Zigzag pinning W, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: p

Download 1017523 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1017523 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

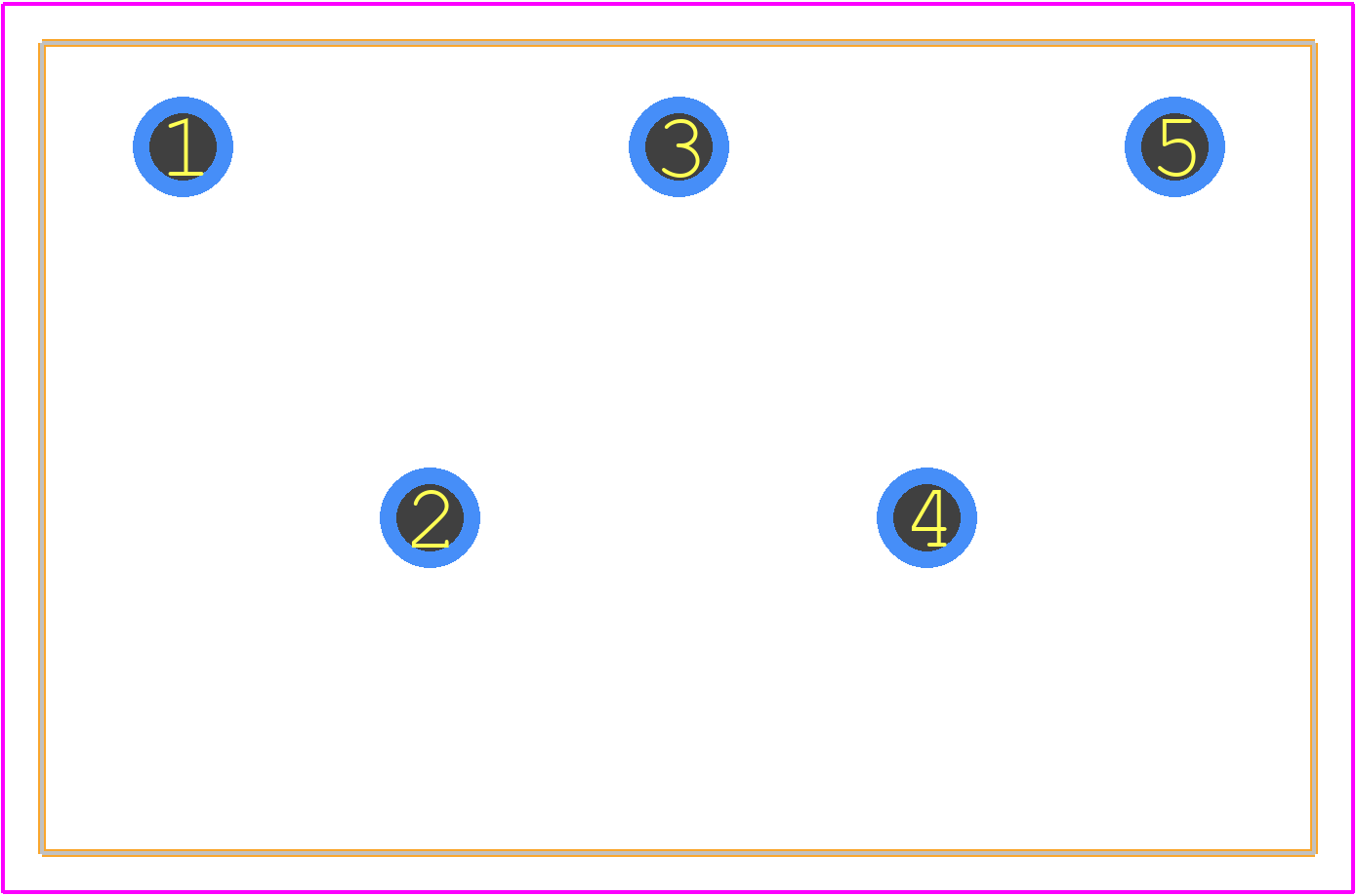

1017523 - Phoenix Contact PCB footprint - Other - Other - 1017523-4
click to zoom
3D Models
1017523 - Phoenix Contact - 3D model - Other - 1017523-4
click to zoom

1017523 Details

  • Manufacturer Part Number:

    1017523

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    PUSH-IN

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    41 A

  • Rated Voltage:

    1000 V

  • Safety Approval:

    CB; CUL; EAC; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    4 mm2

  • Wire Gauge:

    10 AWG

1017523 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type.
  • Yes, the 1017523 connector is designed to withstand high vibrations and is suitable for use in industrial and transportation applications.
  • The connector is resistant to many common chemicals and cleaning agents, but it's recommended to check the specific compatibility before exposure.
  • The operating temperature range for the 1017523 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.
  • The connector has a IP67 rating, which means it is protected against temporary immersion in water and can withstand humid environments, but it's not designed for continuous underwater use.
