The recommended torque value is 0.5-1.5 Nm (4-12 in-lbs) for the screw terminals, but it's always best to consult the specific application requirements and 3M's documentation for precise guidance.
Yes, the 10214-1S10PE is designed to withstand moderate vibration levels, but it's essential to ensure proper mounting and secure connections to prevent damage or disconnection. Consult 3M's documentation and perform thorough testing for your specific application.
The 10214-1S10PE is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F), but it's crucial to consider the specific application requirements and potential thermal stress on the connector.
The 10214-1S10PE has a sealed construction, but it's not designed for direct exposure to harsh outdoor environments or extreme weather conditions. For outdoor use, consider using additional protective measures, such as conformal coatings or environmental sealing.
The 10214-1S10PE is designed for general-purpose applications, but it may not be suitable for high-frequency signals (above 1 GHz). For high-frequency applications, consider using connectors specifically designed for those frequencies, such as 3M's high-frequency connector series.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
10214-1S10PE Overview

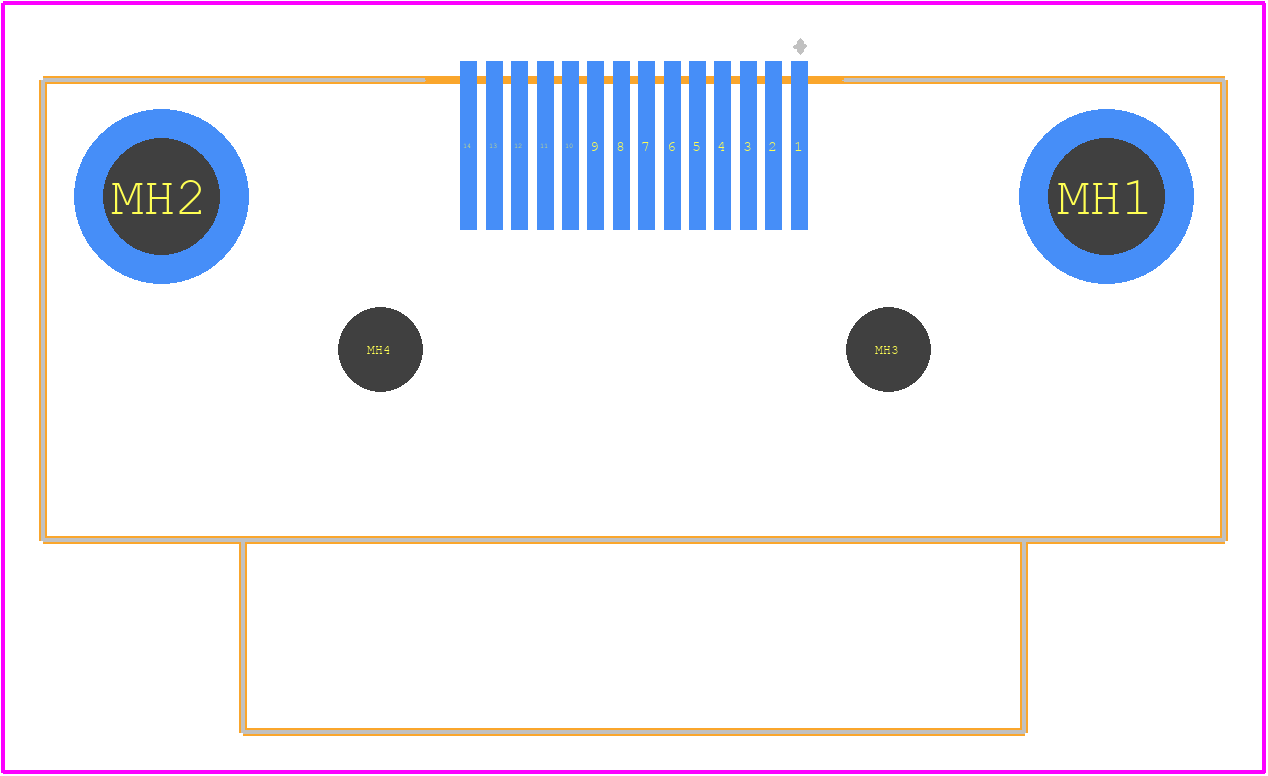

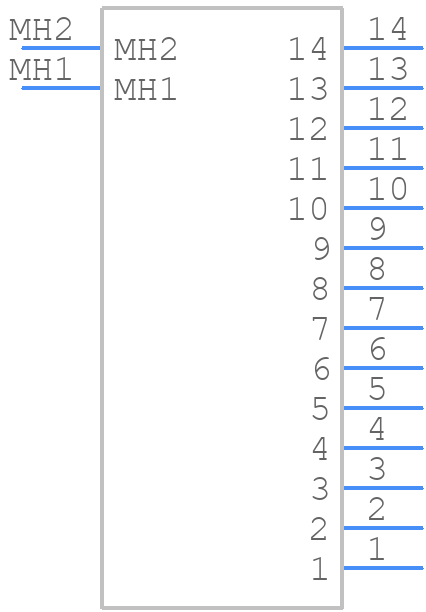

Use the download button to access the 10214-1S10PE schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 10214,
or try a keyword search, such as Telecom and Datacom Connectors
