- Part Number 10268-6202PC
- Manufacturer 3M
- Pin Count 70
- Part Category Connector
- Package Category Other

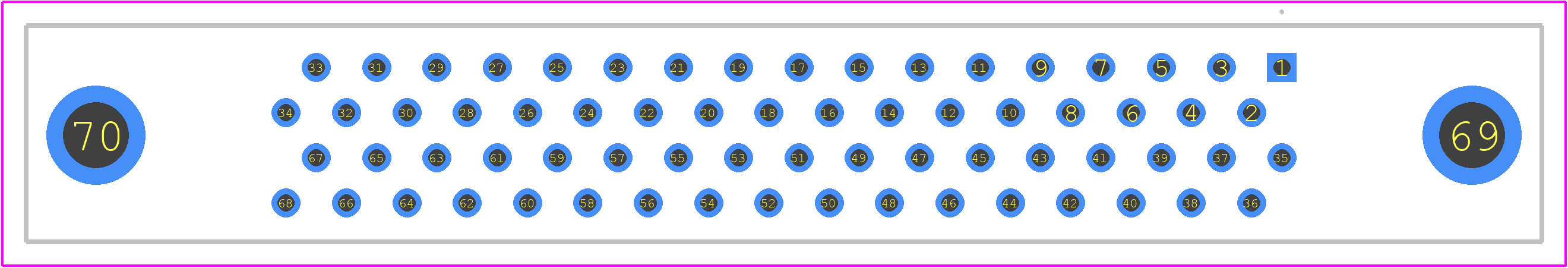

- Footprint Name Other - 10268-6202PC-4
- Released Date Mar 20, 2020
- Last Modified Date Feb 25, 2025 4:46 AM UTC
- Pinout / Pin List Click Here (Member Only)
10268-6202PC Details
-
Manufacturer Part Number:
10268-6202PC
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.30
-
Factory Lead Time:
15 Weeks, 6 Days
-
Manufacturer:
3M Interconnect
-
YTEOL:
6.7
-
Connector Type:
RIBBON D CONNECTOR
-
Contact Finish Mating:
NOT SPECIFIED
10268-6202PC Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 in-lbs (0.056-0.169 Nm) to ensure secure connections.
-
Yes, the 10268-6202PC is designed to withstand vibrations up to 10 Gs (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
-
The 10268-6202PC has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to use additional protection or sealing for extended outdoor use.
-
The 10268-6202PC has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
-
While the datasheet specifies 20 AWG wire, the connector can accommodate wire sizes from 18 AWG to 24 AWG. However, it's essential to ensure the wire size and insulation meet the connector's specifications to maintain reliability.
