104-PR-2A footprint, schematic symbol and 3D model by E-T-A

Symbol

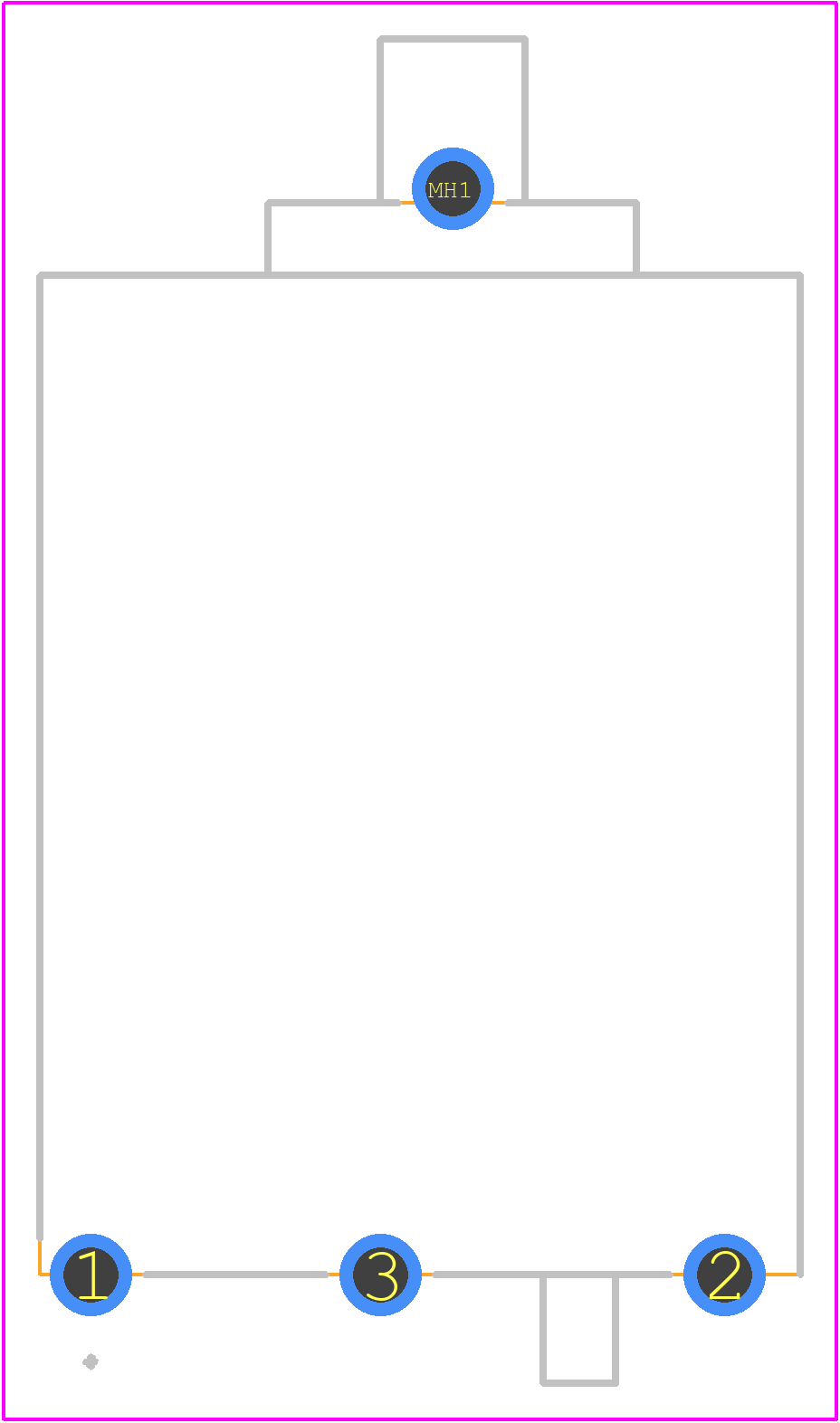

PCB Footprints

104-PR-2A Details

The recommended mounting orientation is vertical, with the terminals facing downwards to prevent moisture accumulation.
Ensure good airflow around the device, and consider using a heat sink or thermal interface material if operating in high-temperature environments.
The maximum allowable voltage drop is 2.5V, exceeding which may affect the device's performance and lifespan.
Yes, the 104-PR-2A is designed to withstand vibrations up to 10g, but ensure proper mounting and secure wiring to prevent damage.
Check for proper wiring, ensure the device is properly mounted, and verify the input voltage is within the specified range. Consult the datasheet and E-T-A's application notes for further guidance.

Community Provided

System Verified

Community Approved

Use the download button to access the 104-PR-2A schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 104-P, or try a keyword search, such as Circuit Breaker
