The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the E-T-A application notes.
Yes, the 104-PR-8A is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
Ensure good airflow around the device, and consider using a heat sink or thermal interface material if operating in high-temperature environments.
The 104-PR-8A is designed to operate up to 2000 meters above sea level, but derating may be necessary for higher altitudes.
Yes, the 104-PR-8A is designed to operate in humid environments, but ensure proper sealing and conformal coating to prevent moisture ingress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
104-PR-8A Overview

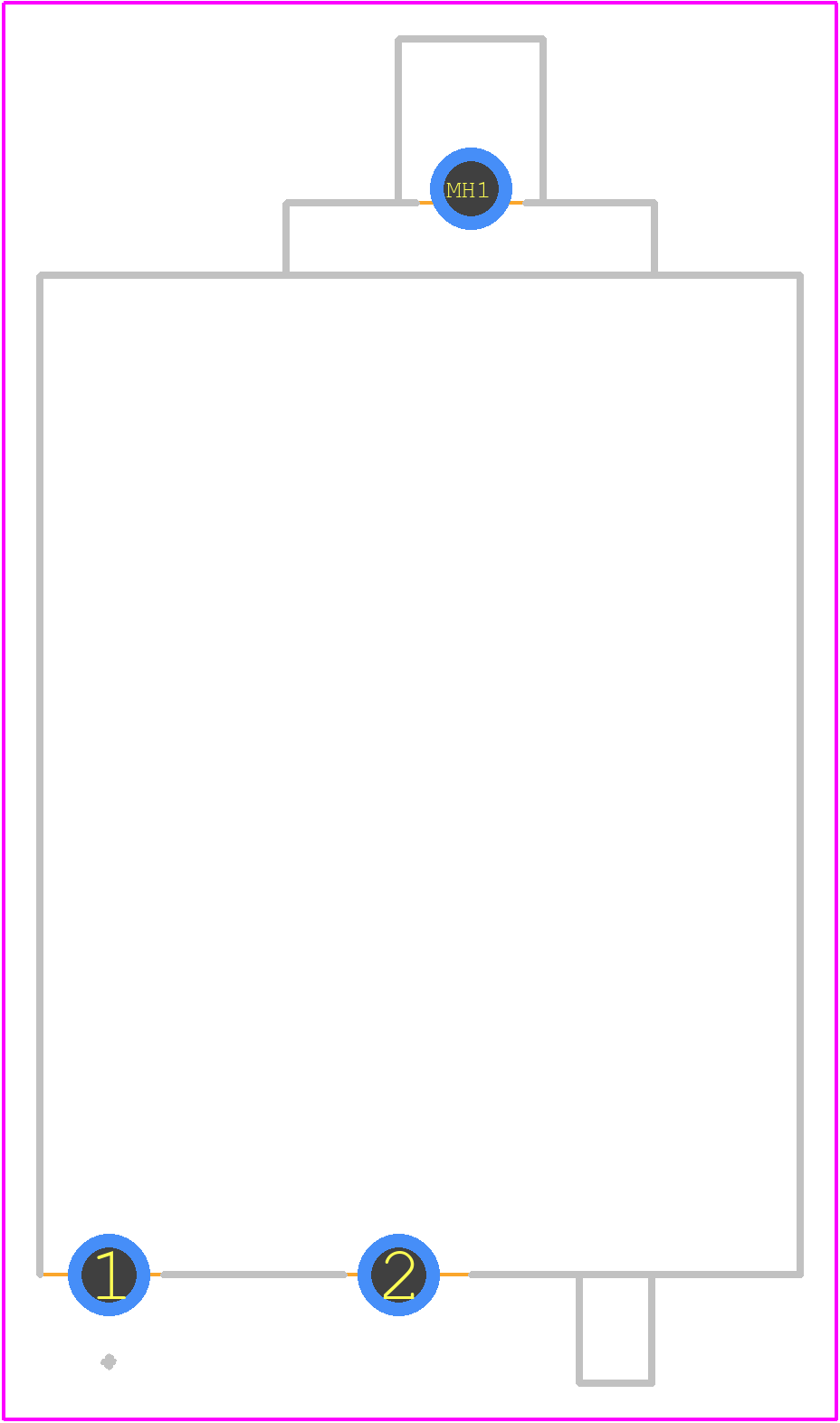

Use the download button to access the 104-PR-8A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 104-P,
or try a keyword search, such as Circuit Breaker
