1043757 - Phoenix Contact

Description: FP 0,8/ 80-MV-SH 2,65 - shielded SMD male connector, nominal current: 1.7 A, test voltage: 500 V AC, number of positions: 80, pitch: 0.8 mm, color: black, contact surface: Au, contact connection type: Pin, mounting: SMD soldering

Download 1043757 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1043757 - Phoenix Contact - PCB symbol
click to zoom
PCB Footprints

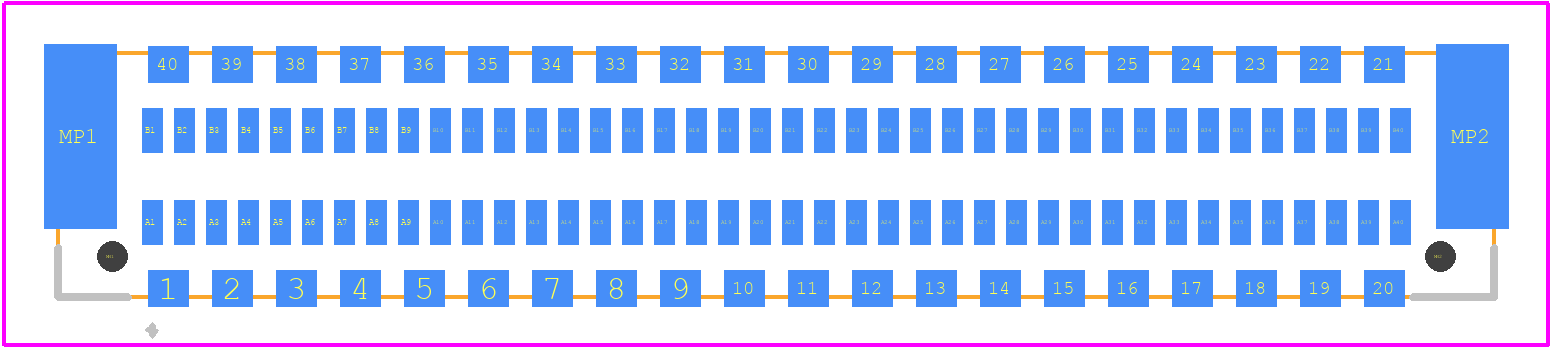

1043757 - Phoenix Contact PCB footprint - Other - Other - 1043757-3
click to zoom
3D Models
1043757 - Phoenix Contact - 3D model - Other - 1043757-3
click to zoom

1043757 Details

  • Manufacturer Part Number:

    1043757

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Phoenix Contact

  • YTEOL:

    9

  • Additional Feature:

    STAKING HEIGHT: 7.5 MM, 10.5 MM, 13.5 MM; APPROVALS: UL

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.24 inch

  • Body Depth:

    0.281 inch

  • Body Length:

    1.413 inch

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    15 mΩ

  • Contact Style:

    BLADE PIN-SKT

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.031 inch

  • Mating Contact Row Spacing:

    0.047 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.3 mm

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Signal):

    1.7 A

  • Reference Standard:

    CUL; EAC

  • Terminal Pitch:

    0.8 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    80

  • UL Flammability Code:

    94V-0

1043757 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm, depending on the specific application and panel material. It's essential to consult the installation instructions and follow the recommended torque to ensure a secure connection.
  • Yes, the 1043757 connector is designed to withstand vibrations and shocks. However, it's crucial to ensure that the connector is properly secured to the panel and that the cables are properly strain-relieved to prevent damage or disconnection.
  • The 1043757 connector has a IP67 rating, which means it's protected against dust and temporary immersion in water. However, it's not designed for continuous outdoor use or exposure to extreme temperatures, chemicals, or UV radiation. For outdoor use, consider using a connector with a higher IP rating or additional protection measures.
  • The 1043757 connector is designed for use with specific cable types and sizes. While it may be possible to use it with other cables, it's essential to consult the datasheet and manufacturer's recommendations to ensure compatibility and avoid damage to the connector or cable.
  • To ensure proper grounding and shielding, follow the manufacturer's instructions for connecting the shield and ground wires. Additionally, ensure that the connector is properly secured to the panel and that the cables are properly shielded and grounded to prevent electromagnetic interference (EMI) and radio-frequency interference (RFI).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1043757 Overview

Use the download button to access the 1043757 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 10437, or try a keyword search, such as Headers and Edge Type Connectors

About Phoenix Contact

Phoenix Contact is a market leader in industrial automation and connectivity solutions headquartered in Germany. They manufacture terminal blocks, relays, connectors, power supplies, controllers, networking devices, and surge suppression devices for many applications. Phoenix Contact provides innovative solutions for the automotive / e-mobility, building, rail and city infrastructure, power and energy, and industrial industries.
