104PPA850K - Cornell Dubilier

Description: Film Capacitors 0.1 uF 850V 10%

Download 104PPA850K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
104PPA850K - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

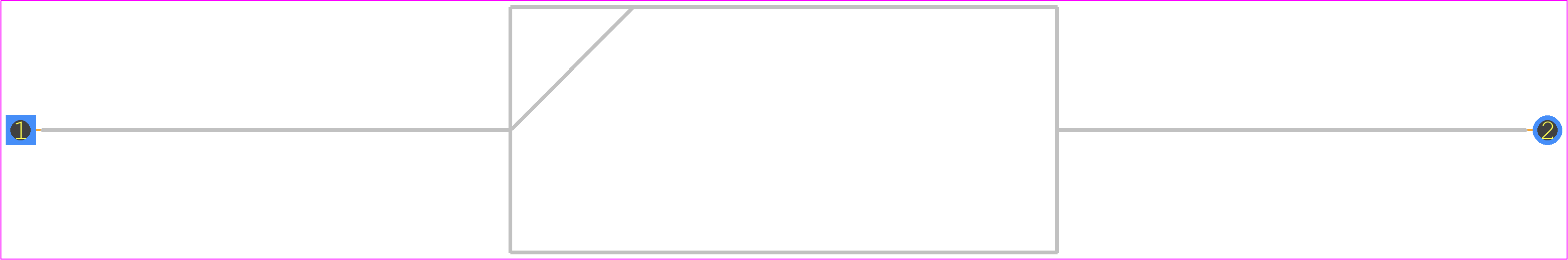

104PPA850K - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 104PPA850K
click to zoom
3D Models
104PPA850K - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 104PPA850K
click to zoom

104PPA850K Details

  • Manufacturer Part Number:

    104PPA850K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.60

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    6.93

  • Additional Feature:

    ESR IS MEASURED AT 100KHZ, RIPPLE CURRENT IS MEASURED AT 100KHZ AND 70CEL

  • Capacitance:

    0.1 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Diameter:

    13 mm

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    10.4 mΩ

  • JESD-609 Code:

    e3

  • Length:

    29 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Axial

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    450 V

  • Rated (DC) Voltage (URdc):

    850 V

  • Ripple Current:

    4500 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    WIRE

104PPA850K Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the 104PPA850K is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress and damage.
  • The 104PPA850K is designed to operate in humid environments, but it's essential to follow the manufacturer's guidelines for humidity ratings and ensure proper sealing and encapsulation to prevent moisture ingress.
  • The ESR of the 104PPA850K is not explicitly stated in the datasheet, but it can be estimated to be around 0.05 ohms based on the capacitor's construction and materials. However, it's recommended to consult with the manufacturer or a reliable source for more accurate information.
  • No, the 104PPA850K is not designed for high-temperature applications above 125°C. Operating the capacitor above its rated temperature can lead to reduced performance, reliability issues, and even failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

104PPA850K Overview

Use the download button to access the 104PPA850K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 104PP, or try a keyword search, such as Film Capacitors
