1053141214 - Molex

Description: Nano-Fit Right-Angle Header, Through Hole, 2.50mm Pitch, Dual Row, 14 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable, Tray

Download 1053141214 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1053141214 - Molex - PCB symbol
click to zoom
PCB Footprints

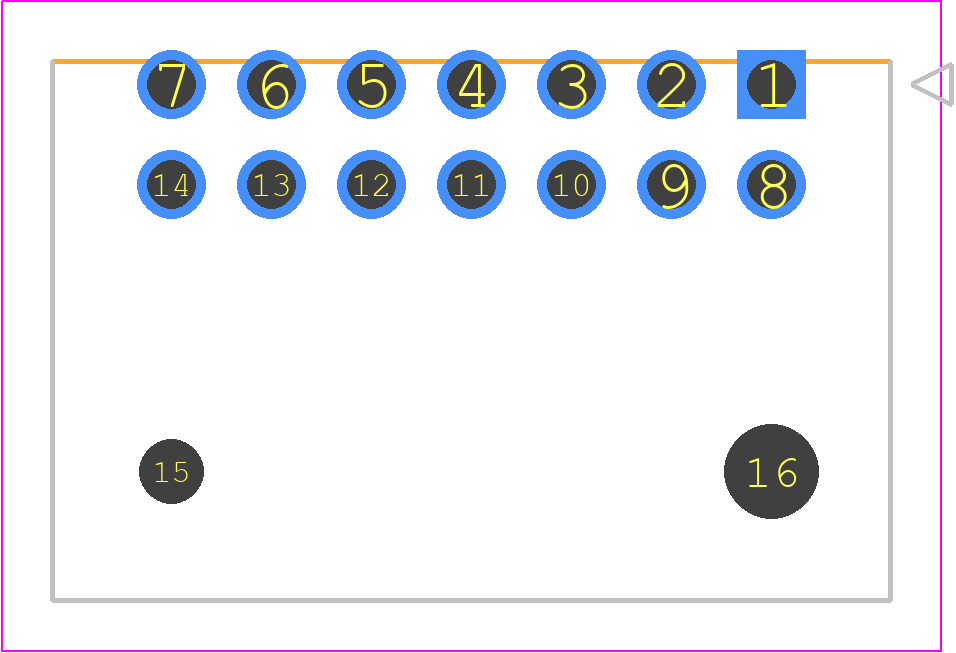

1053141214 - Molex PCB footprint - Other - Other - 105314YY14
click to zoom
3D Models
1053141214 - Molex - 3D model - Other - 105314YY14
click to zoom

1053141214 Details

  • Manufacturer Part Number:

    1053141214

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    6.75

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

1053141214 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.4 in-lbs).
  • Yes, the 105314-1214 connector is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the 105314-1214 connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the 105314-1214 connector is designed for automated assembly and can be used with pick-and-place machines.
  • The maximum current rating for the 105314-1214 connector is 3A per contact.
